Marshall Integration Kit

VPOS Touch

The following components are part of the Touch device setup. Each plays a specific role during installation and operation:

Name	Description	Image

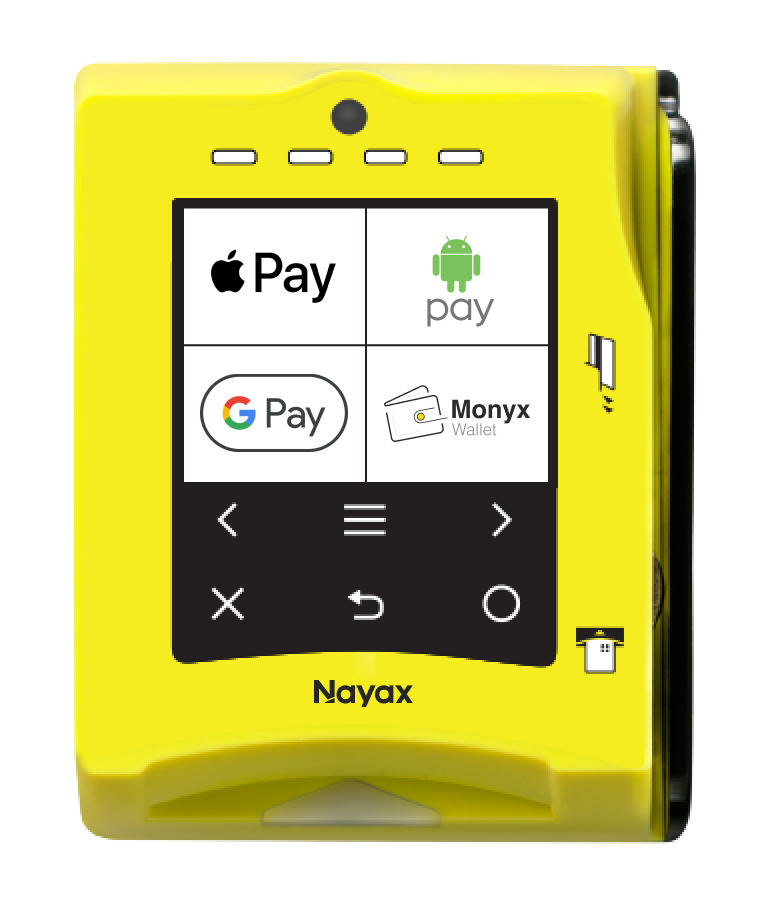

Touch Device	The Nayax VPOS Touch Marshall device

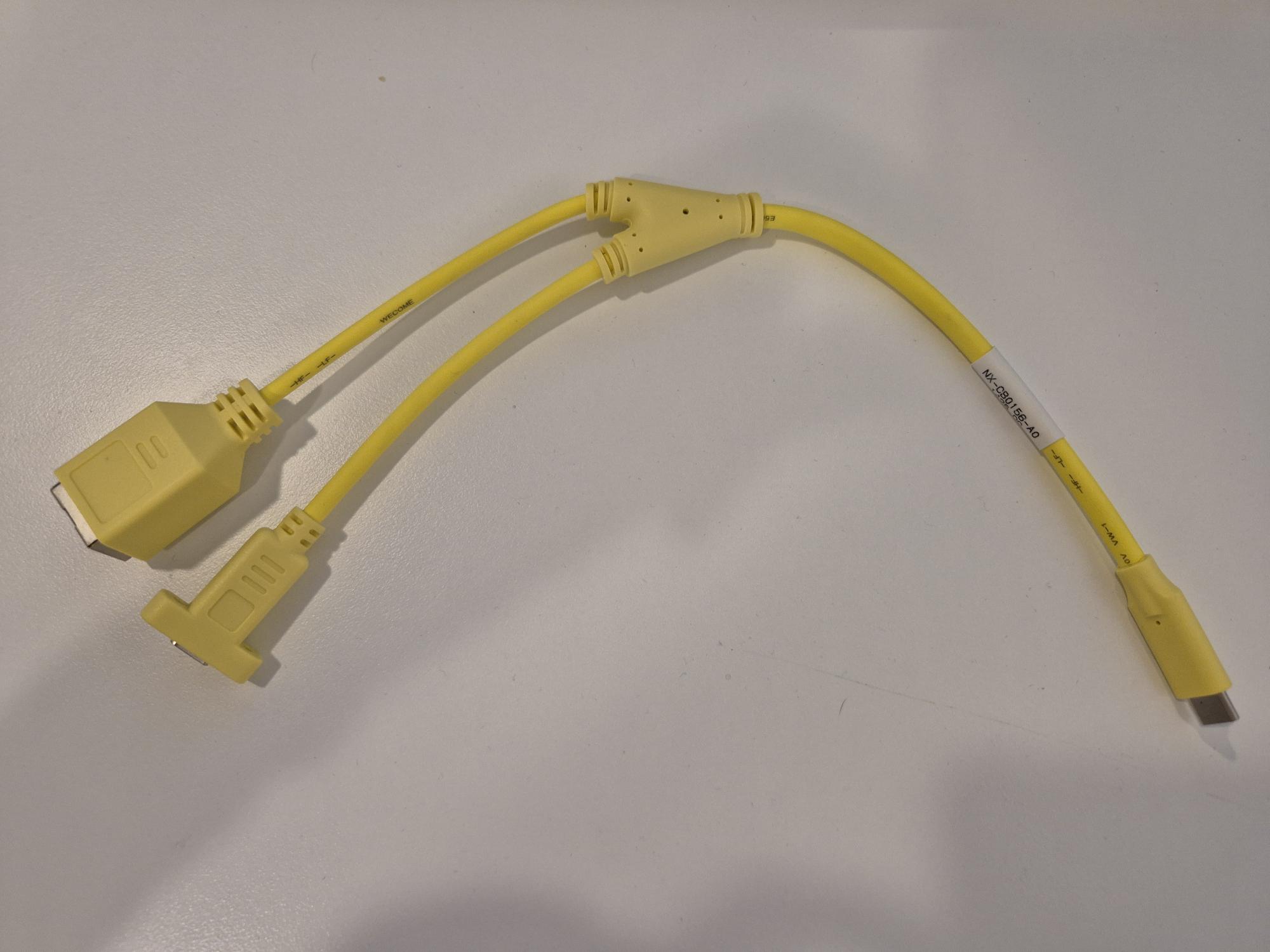

Device Connector	Used to connect power, cables, and additional accessories required for the device's operation.

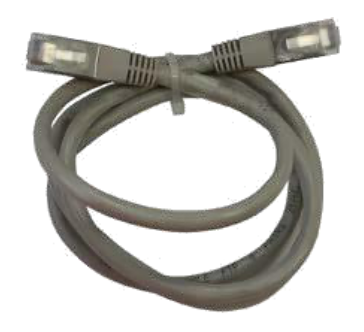

LAN (Ethernet Cable Port)	Enables a wired connection to a router for internet access.

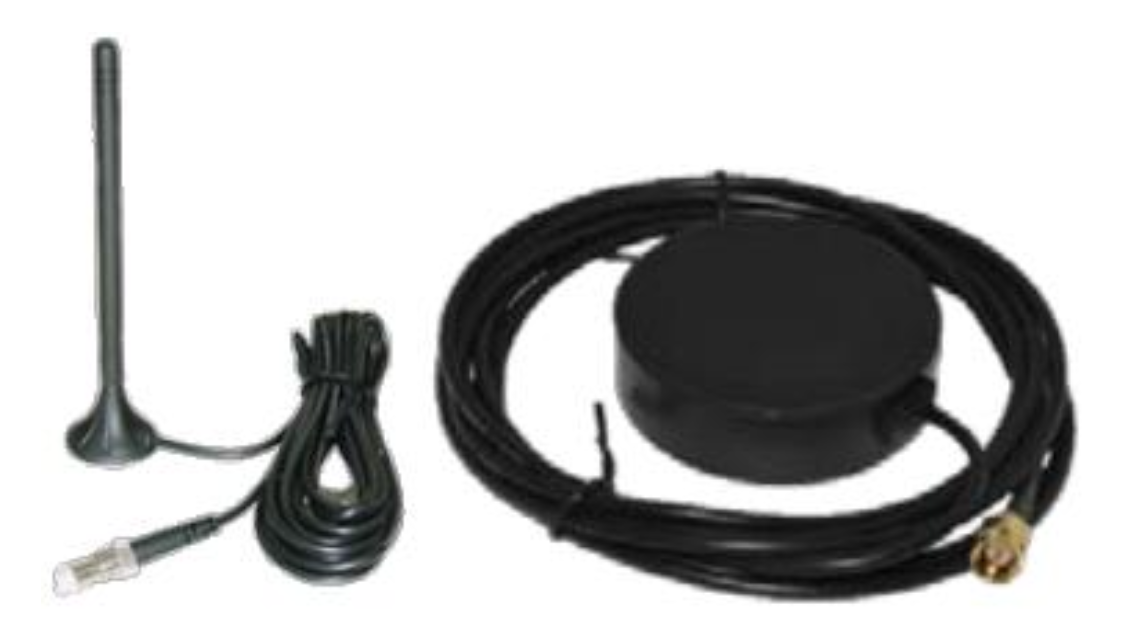

Antenna	Allows the attachment of the cellular antenna for network communication.

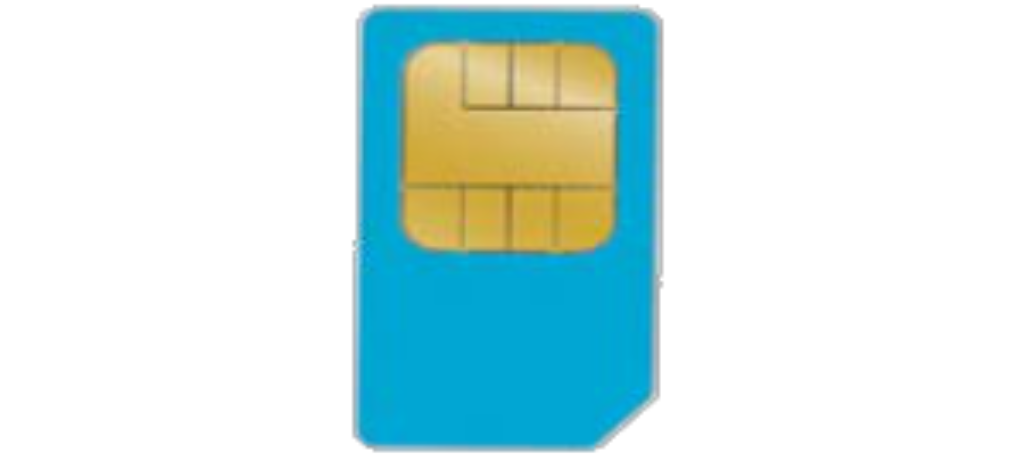

SIM	SIM card for enabling data connectivity in Nayax Touch VPOS devices.

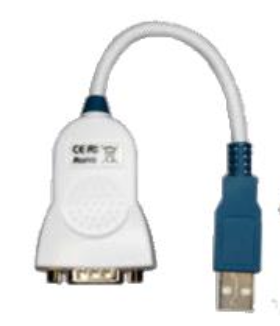

Chipi-X USB2Com adaptor cable	USB-to-serial adaptor cable for connecting Nayax Touch VPOS devices.

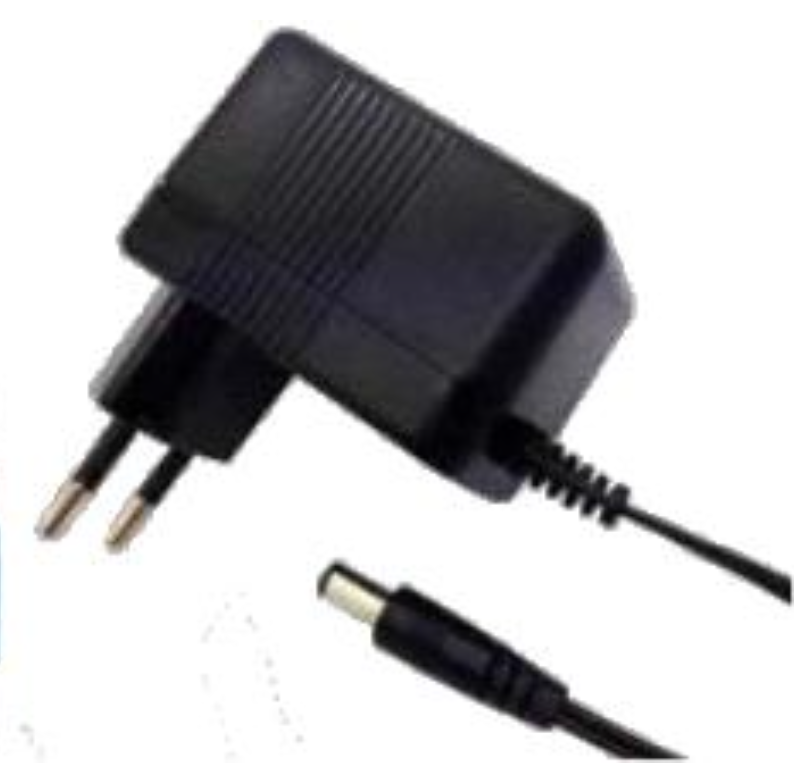

24V DC power adaptor	24V DC power adaptor for powering Nayax Touch VPOS units.

VPOS Media- WIP!!!

The following components are part of the Touch device setup. Each plays a specific role during installation and operation:

Name	Description	Image

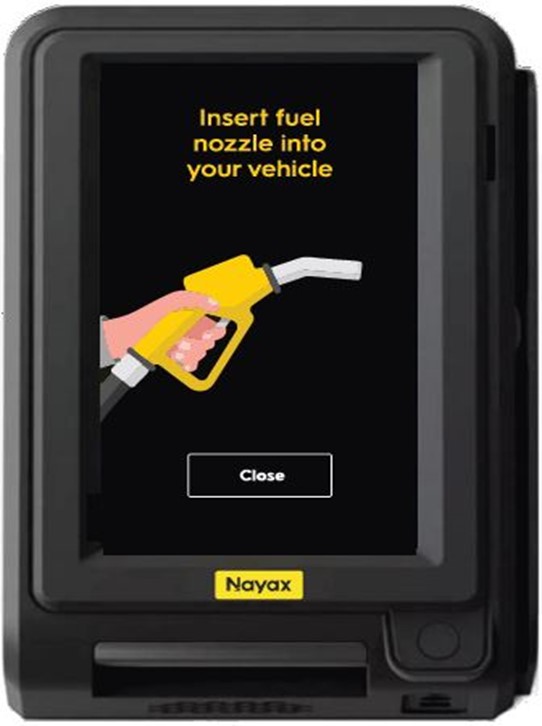

Media Device	The Nayax VPOS Media Marshall device

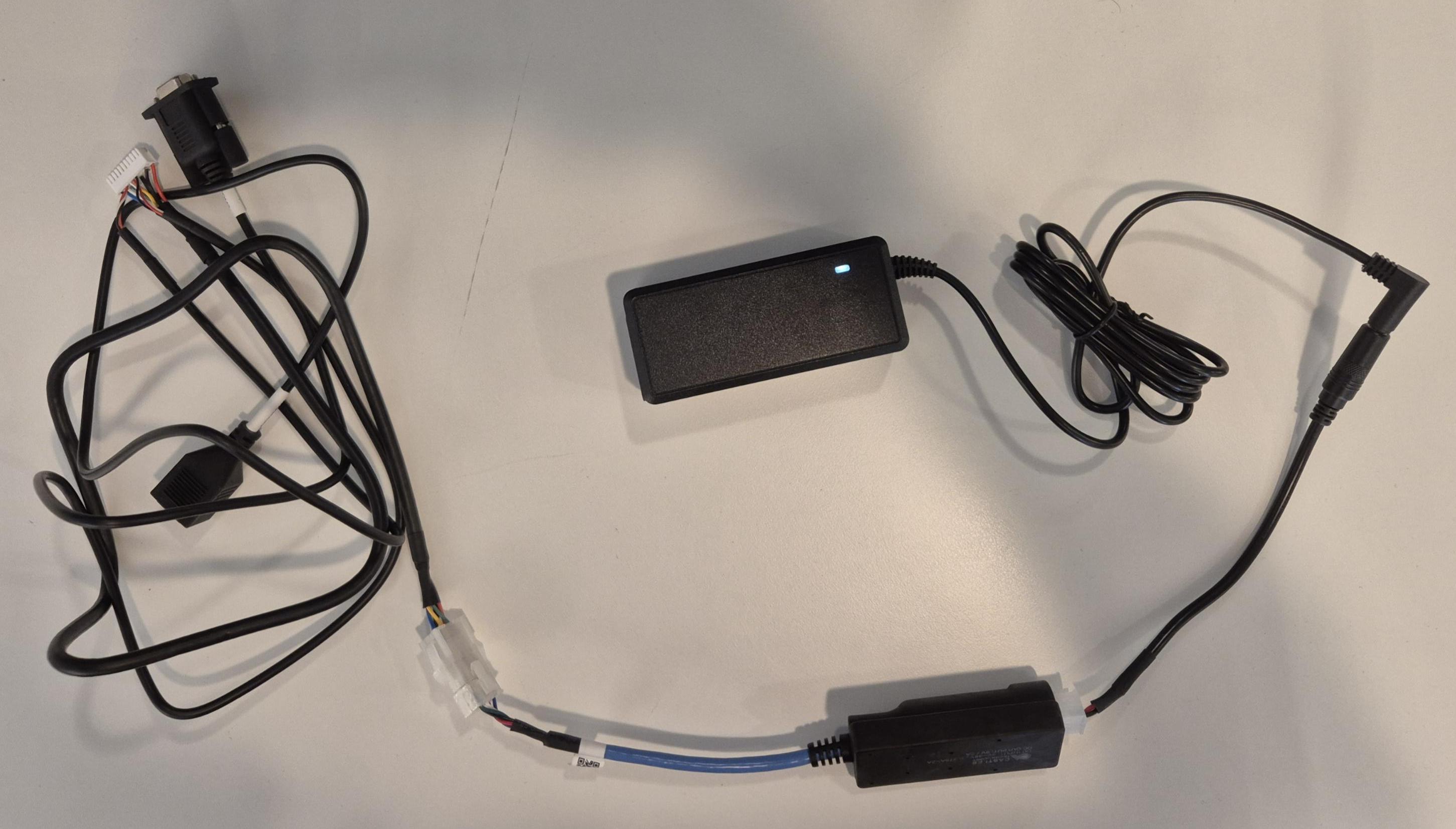

Device Connector	Used to connect power, cables, and additional accessories required for the device's operation. The cable is made out of 3 parts. Appearing in the photo from left to right: The cable itself (the one with the RS 232 connector), the ANEX (the part with the blue cable) and the power adaptor

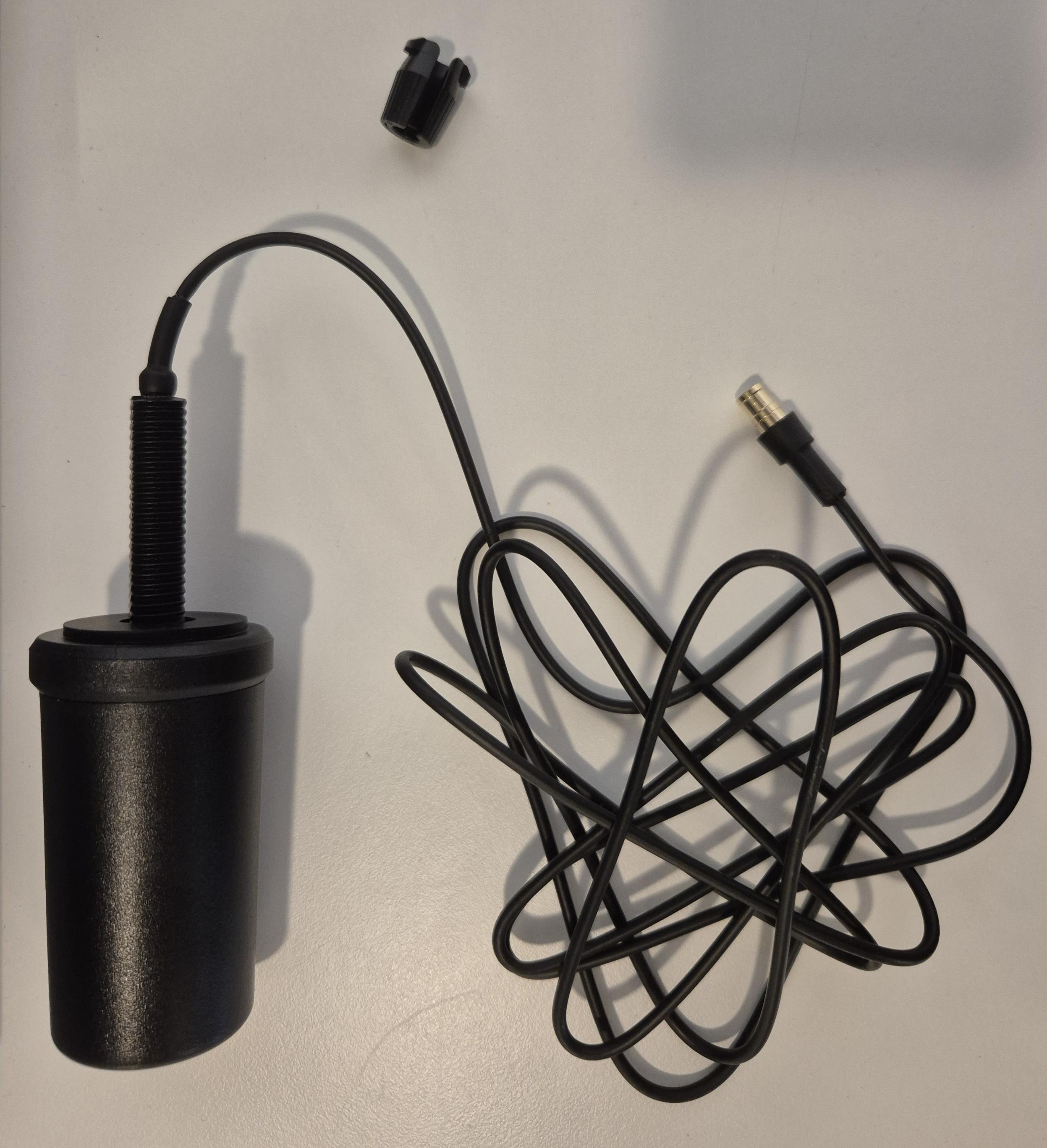

Antenna	Allows the attachment of the cellular antenna for network communication.
SIM	SIM card for enabling data connectivity in Nayax VPOS Media devices.
Chipi-X USB2Com adaptor cable	USB-to-serial adaptor cable for connecting Nayax Touch VPOS devices.

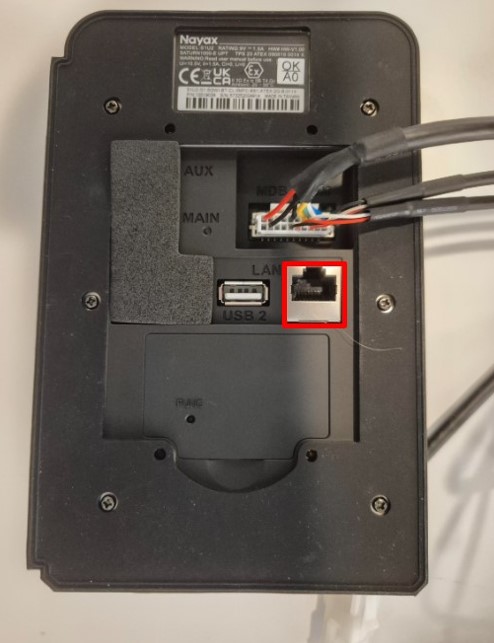

Important note- the ETH cable should be connected directly to the device itself, and NOT via the Marshall cable. The RJ45 connector of the Marshall cable is not for LAN connectors but rather for DEX (as written on it)

The correct RJ45 port for LAN connector
