EMV Core

Nayax Embedded Solution enables OEM manufacturers to integrate secure, affordable, and global payment capabilities into their machines. This solution includes a robust hardware reader, flexible software SDK, and powerful payment processing services. Whether you're developing Android or Linux applications, Nayax provides the tools to streamline integration and ensure smooth transactions.

Key Benefits

Global Payment Acceptance: Support for debit, credit, prepaid cards, and mobile payments.
Developer-Friendly Integration: JSON and Java APIs with sample code for quick setup.
Reliable and Scalable: Redundant PCI-certified servers and 24/7 tier-1 support in 50+ countries.

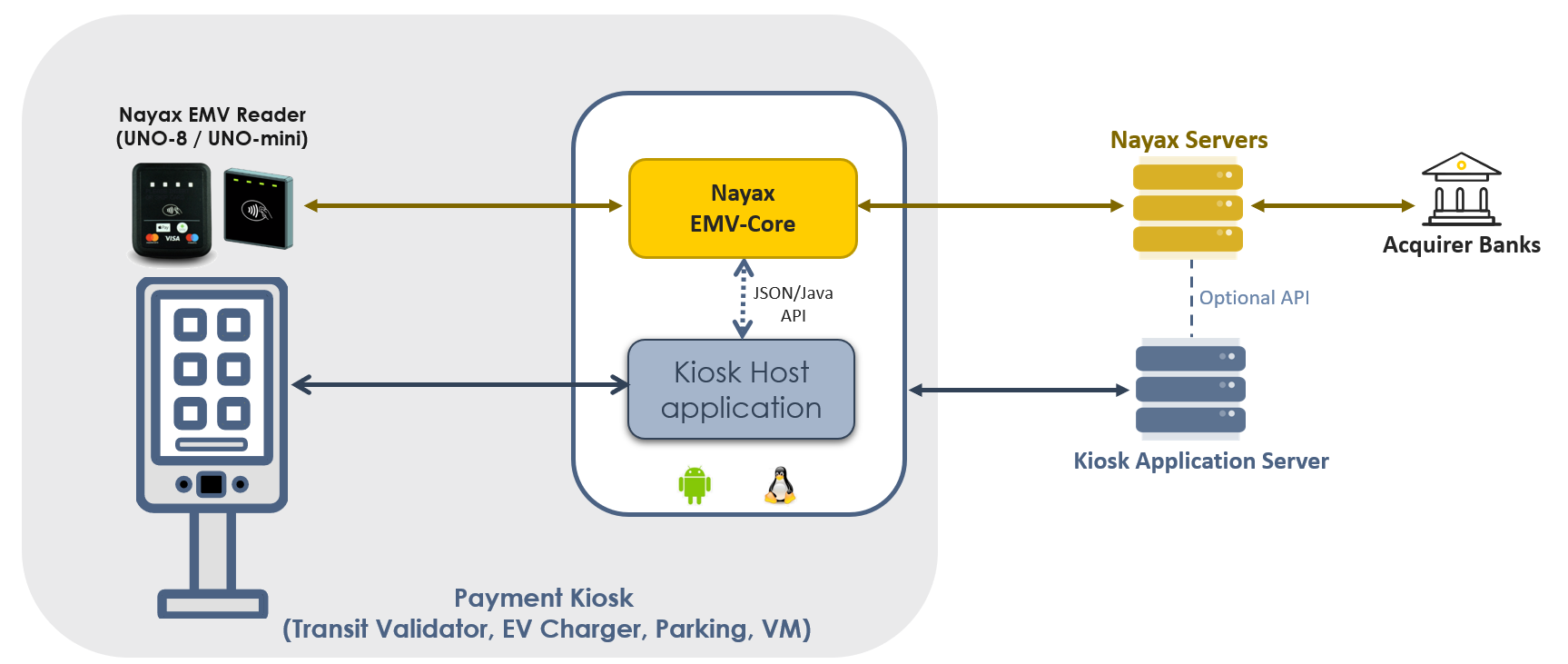

Solution Components

The Nayax Embedded solution is composed of the following components:

Nayax EMV Reader

A low-cost, EMV-certified reader that securely reads card data and communicates exclusively with the EMV Core for processing.

Nayax EMV Core

An SDK installed on the host machine (Android or Linux) that handles communication between the EMV Reader and Nayax servers.

Host Application

Developed by OEM manufacturers to manage the entire payment system, it connects to the Nayax EMV Core for transaction processing and management.

What Nayax Provides

When you choose to use the Nayax Embedded solution, Nayax will provide the following:

Hardware:
- UNO-8/mini: EMV-certified reader with L1, L2, TQM certifications.
Software:
- Nayax EMV Core SDK with sample code for Android and Linux.
- Support for EMV payments, prepaid payments, and remote firmware updates.
Gateway Services:
- Secure processing for all major card brands and mobile payments.
- Redundant PCI-certified servers with 99.9% uptime.
- Remote management with customizable alerts and reporting tools.

Next Steps

This documentation will help you understand EMV Core SDK and how it works. Below are some key areas to explore:
