Single Step Payment

The single-step payment flow enables immediate authorization and settlement in a single operation, streamlining the payment process for use cases that require fast, straightforward transactions. While less robust than the two-step process (PreAuthorize and ConfirmTransaction), it is suitable for low-risk environments such as vending machines or self-service kiosks.

🚧

Nayax encourages merchants to choose the Payment with Pre-Authorization approach since it's safer in cases of communication problem.

Transaction Flow

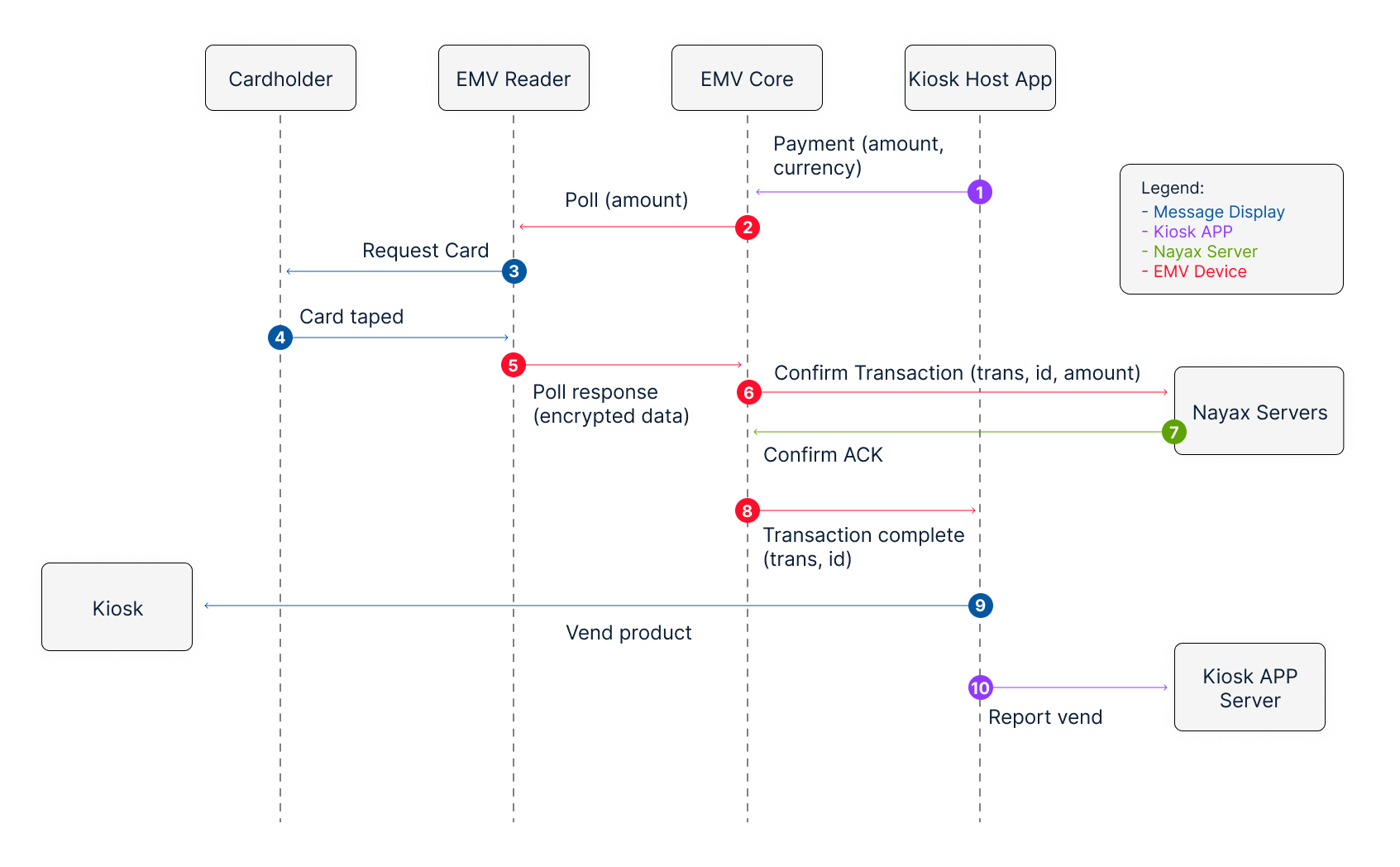

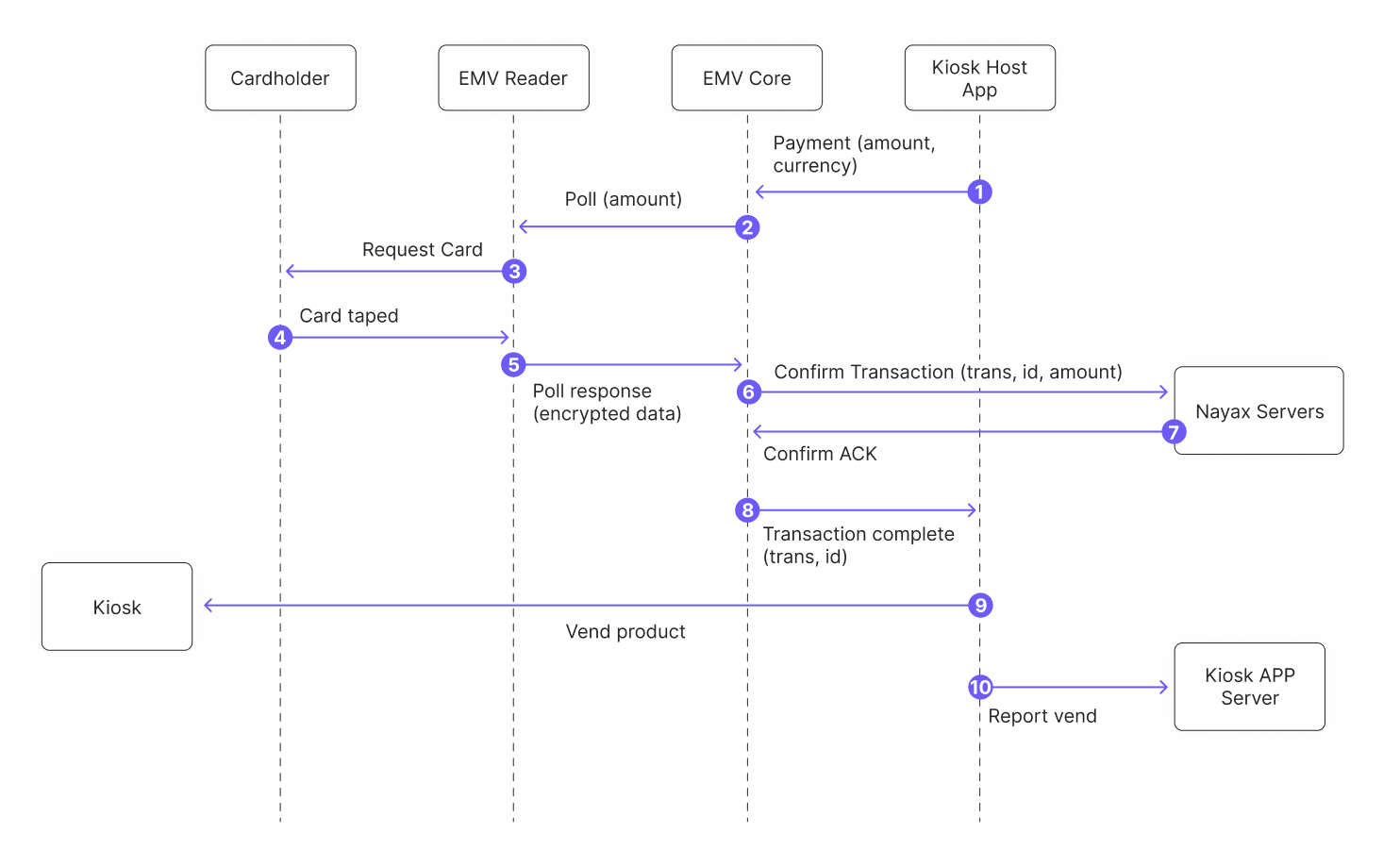

The following diagram shows the transaction flow for a single-step payment:

Where:

1. The host application initiates a payment transaction by calling the PayTransaction method. The total transaction amount, currency, and other parameters are specified to EMV Core upfront.
2. EMV Core polls the card reader to determine whether a card is present.
3. The user taps or inserts their card.
4. EMV Core captures the card's encrypted data.
5. The encrypted card data is sent to the EMV Core.
6. EMV Core confirms the transaction and sends the details to the Nayax Server.
7. The server receives the transaction data and performs the settlement, confirming it to EMV Core.
8. EMV Core receives the transaction result from the server and triggers the TransactionComplete event, sending the transaction's data.
9. The vending is finalized, and the product is delivered to the user.
10. The transaction report is sent to the Kiosk Application server.
