Retrieve Device Information

Suggest Edits

In Nayax Core, devices have various attributes, such as the device's operator, model or ID, and status. These can all be seen in the Devices menu, which you can access in the following way:

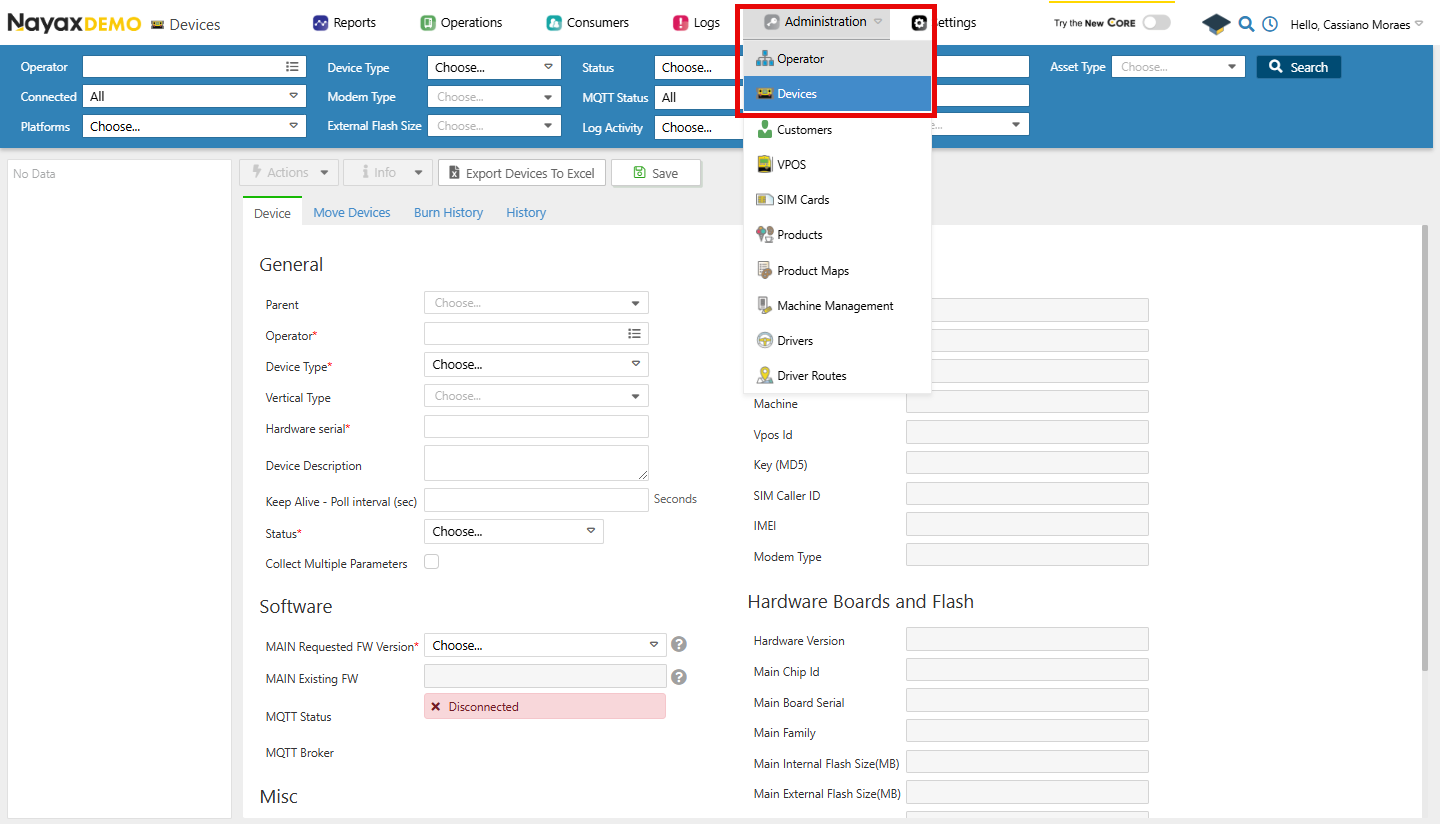

  1. In your Dashboard, go to Administration > Devices.
  2. Use the search function to filter through the list of devices.
  3. Select the desired device from the list.
  4. Open the General Information tab.

Here, you can see the General information about the selected device.

Lynx API Methods

Lynx API allows you to retrieve all this information from one device or a group of devices programmatically using the following endpoints:

get Get All Devices

get Get Device by DeviceID

🚧

Authentication

Refer to the Security & Token page of this documentation to learn how to access your tokens, and how to properly use it to authenticate your API requests.

Retrieve a Device by deviceID

Using the Get Device by DeviceID endpoint, providing it with the deviceID as a path parameter, you can retrieve that device's details. See an example request and response in the code block below:

curl --request GET \
     --url https://qa-lynx.nayax.com/operational/v1/devices/{DeviceID} \
     --header 'accept: application/json'

{
  "VposChipId": "string",
  "IsDeviceExists": true,
  "FWVersionNumber": "string",
  "VposVersionNumber": "string",
  "DeviceID": 0,
  "ActorID": 0,
  "DeviceTypeLutID": 0,
  "DeviceSerial": "string",
  "IMEI": "string",
  "DeviceDescription": "string",
  "SimCardID": 0,
  "FWVersionID": 0,
  "RequestedFwID": 0,
  "PollInterval": 0,
  "StatusID": 0,
  "LastUpdated": "2024-12-09T14:40:50.980Z",
  "IsCollectMultipleParameters": true,
  "IsLogged": true,
  "FRequestedNewVersionDate": "2024-12-09T14:40:50.980Z",
  "FTookNewVersionDate": "2024-12-09T14:40:50.980Z",
  "HardwareVersion": "string",
  "IsRental": true,
  "RentalEndMonth": 0,
  "RentalEndYear": 0,
  "IsToBeReturned": true,
  "FeeCommunicationThreshold": 0,
  "BillingPlanID": 0,
  "BillingPlanActivationDate": "2024-12-09T14:40:50.980Z",
  "DeviceCreationDate": "2024-12-09T14:40:50.980Z",
  "CreatedBy": 0,
  "UpdatedBy": 0,
  "DistributorBillingPlanID": 0,
  "ChipID": "string",
  "OrderID": 0,
  "ExternalFlashSize": 0,
  "BoardSerial": "string",
  "FlashSize": 0,
  "DeviceFamily": "string",
  "ModemModel": "string",
  "TrialEndDate": "2024-12-09T14:40:50.980Z",
  "VerticalTypeID": 0,
  "VerticalProductTypeID": 0,
  "VerticalTypeLutID": 0,
  "VerticalProductTypeLutID": 0,
  "Refs": {
    "additionalProp": "string"
  }
}

📘

Path Params

Replace <DeviceID> with the actual identifier of the device.

Retrieve all Devices

Using the Get All Devices endpoint, you can retrieve a list of available devices. The code block below shows an example request and response.

curl --request GET \
     --url https://qa-lynx.nayax.com/operational/v1/devices \
     --header 'accept: application/json'

[
  {
    "VposChipId": "string",
    "IsDeviceExists": true,
    "FWVersionNumber": "string",
    "VposVersionNumber": "string",
    "DeviceID": 0,
    "ActorID": 0,
    "DeviceTypeLutID": 0,
    "DeviceSerial": "string",
    "IMEI": "string",
    "DeviceDescription": "string",
    "SimCardID": 0,
    "FWVersionID": 0,
    "RequestedFwID": 0,
    "PollInterval": 0,
    "StatusID": 0,
    "LastUpdated": "2024-12-09T14:40:50.980Z",
    "IsCollectMultipleParameters": true,
    "IsLogged": true,
    "FRequestedNewVersionDate": "2024-12-09T14:40:50.980Z",
    "FTookNewVersionDate": "2024-12-09T14:40:50.980Z",
    "HardwareVersion": "string",
    "IsRental": true,
    "RentalEndMonth": 0,
    "RentalEndYear": 0,
    "IsToBeReturned": true,
    "FeeCommunicationThreshold": 0,
    "BillingPlanID": 0,
    "BillingPlanActivationDate": "2024-12-09T14:40:50.980Z",
    "DeviceCreationDate": "2024-12-09T14:40:50.980Z",
    "CreatedBy": 0,
    "UpdatedBy": 0,
    "DistributorBillingPlanID": 0,
    "ChipID": "string",
    "OrderID": 0,
    "ExternalFlashSize": 0,
    "BoardSerial": "string",
    "FlashSize": 0,
    "DeviceFamily": "string",
    "ModemModel": "string",
    "TrialEndDate": "2024-12-09T14:40:50.980Z",
    "VerticalTypeID": 0,
    "VerticalProductTypeID": 0,
    "VerticalTypeLutID": 0,
    "VerticalProductTypeLutID": 0,
    "Refs": {
      "additionalProp": "string"
    }
  }
]

This endpoint allows you to use filters in the query parameters. See the table below for all the available query params:

Query ParameterTypeDescription
ActorIdint64The unique identifier of the actor associated with the devices.
isConnectedbooleanFilter devices based on their connection status.
pageNumberint32Defaults to 1. The page number for paginated results.
pageSizeint32Defaults to 1000. The number of results per page.
nayaxDeviceSerialstringThe serial number of the Nayax device.
orderIdint32Filter devices based on the associated order ID.
statusIdint32Filter devices based on their status ID.
createdDtdate-timeFilter devices based on their creation date.
updatedDtdate-timeFilter devices based on the last updated date.
boardSerialstringThe serial number of the device's mainboard.
imeistringThe International Mobile Equipment Identity number of the device.
chipIdstringThe unique identifier for the chip in the device.
