Set Up Transaction Delivery

To set up Transaction Delivery to Amazon SQS, you must have access to the Nayax Core with the appropriate user permissions. Specifically, the following roles are required:

Transaction Dispatcher
Transactions Report Subscriber

Additionally, ensure you have the Amazon SQS Queue URL, Access Key, and Secret Key obtained during the queue setup process.

Operator Level Setup

Follow these steps to configure transaction delivery at the operator level in the Nayax Core:

Log in to the Nayax Core.

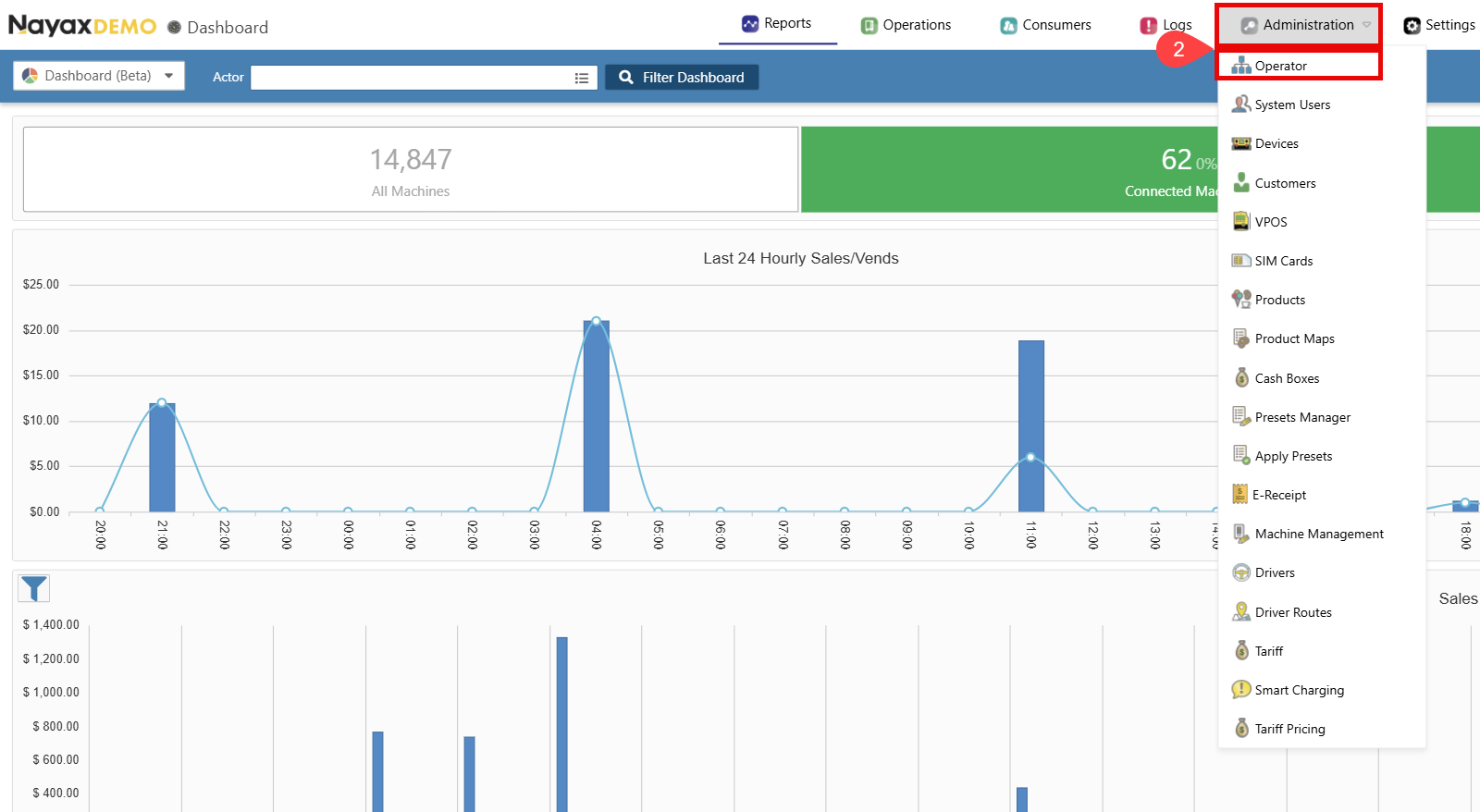

Go to Administration > Operator.

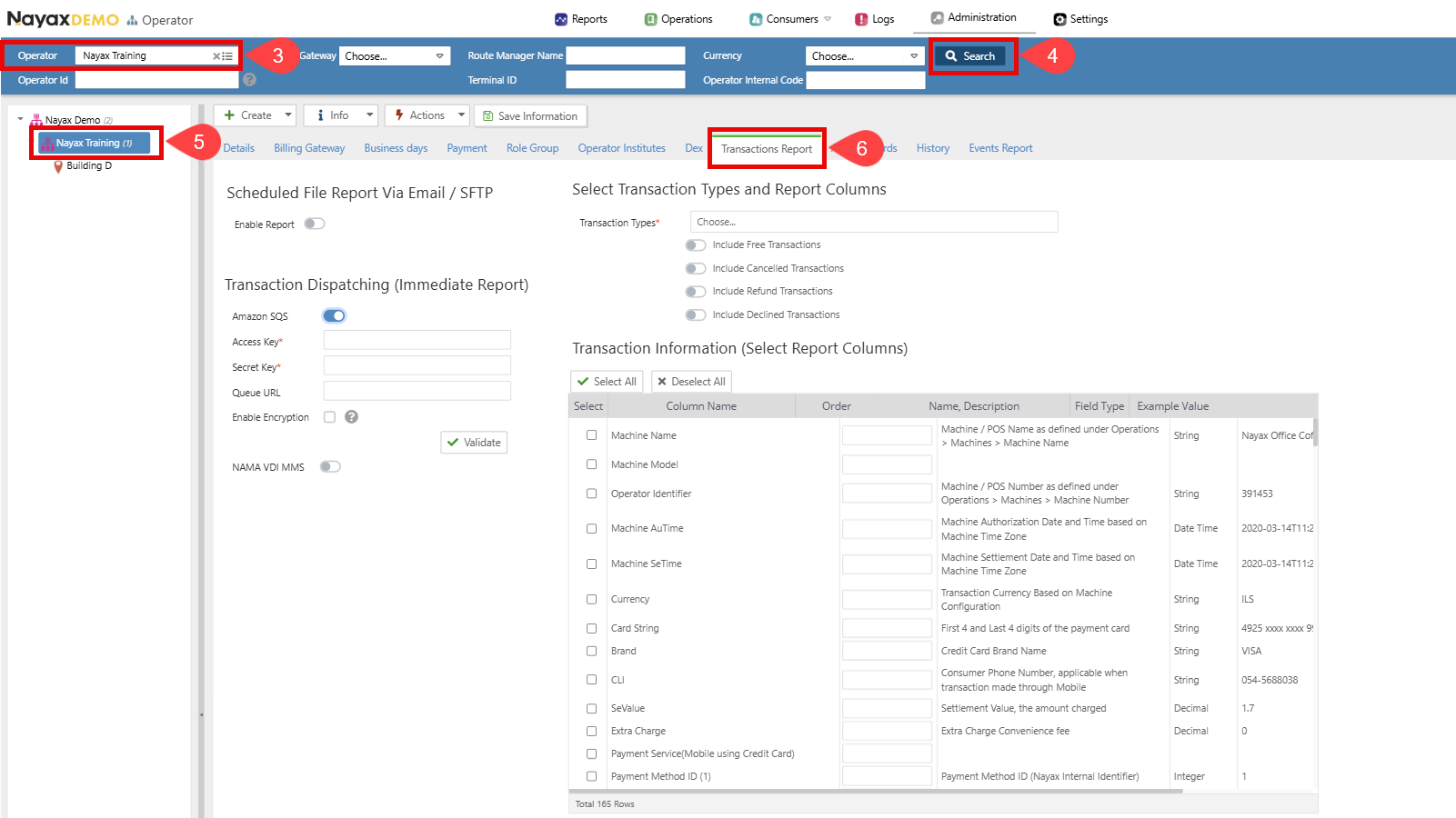

Find the Operator you wish to set up.
Click the Search button.
Select the operator to display all tabs and details.
Go to the Transactions Report tab.

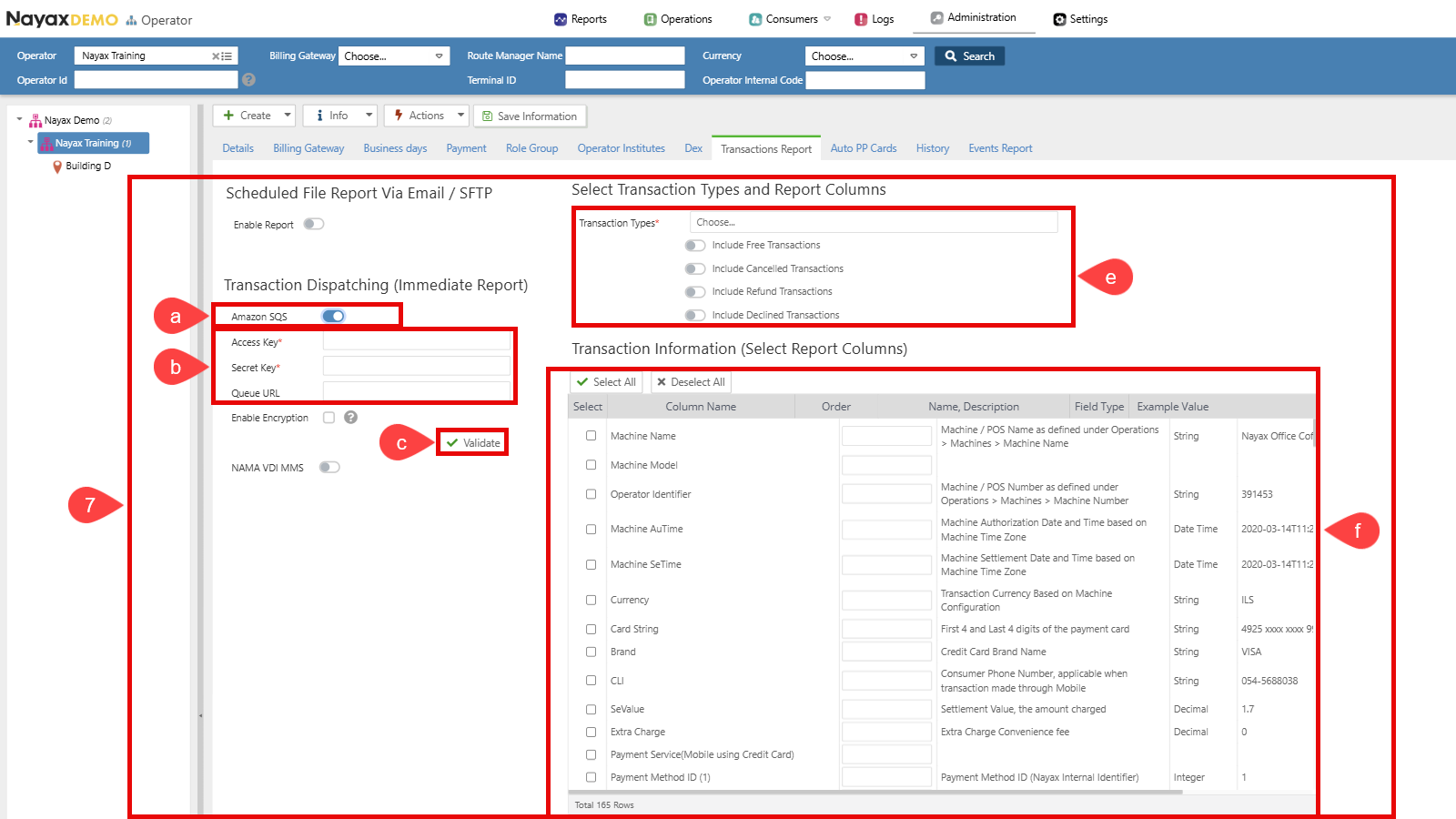

Set up Transaction Dispatching by completing the following steps:
a. Select the checkbox next to Amazon SQS to enable this option.
b. Enter the SQS credentials (Access Key, Secret Key and Queue URL).
c. Click the Validate button to ensure the Queue credentials are correct.
d. Enable Encryption (Optional). See the Set Up Encryption section for details.
e. Choose payment methods to send. Only the selected payment methods will be dispatched to the Queue.
You can also select the transaction type:
- Free Transactions
- Cancelled Transactions
- Refund Transactions
- Declined Transactions
f. Select the Columns of information to include. See the table below for a description of available fields.

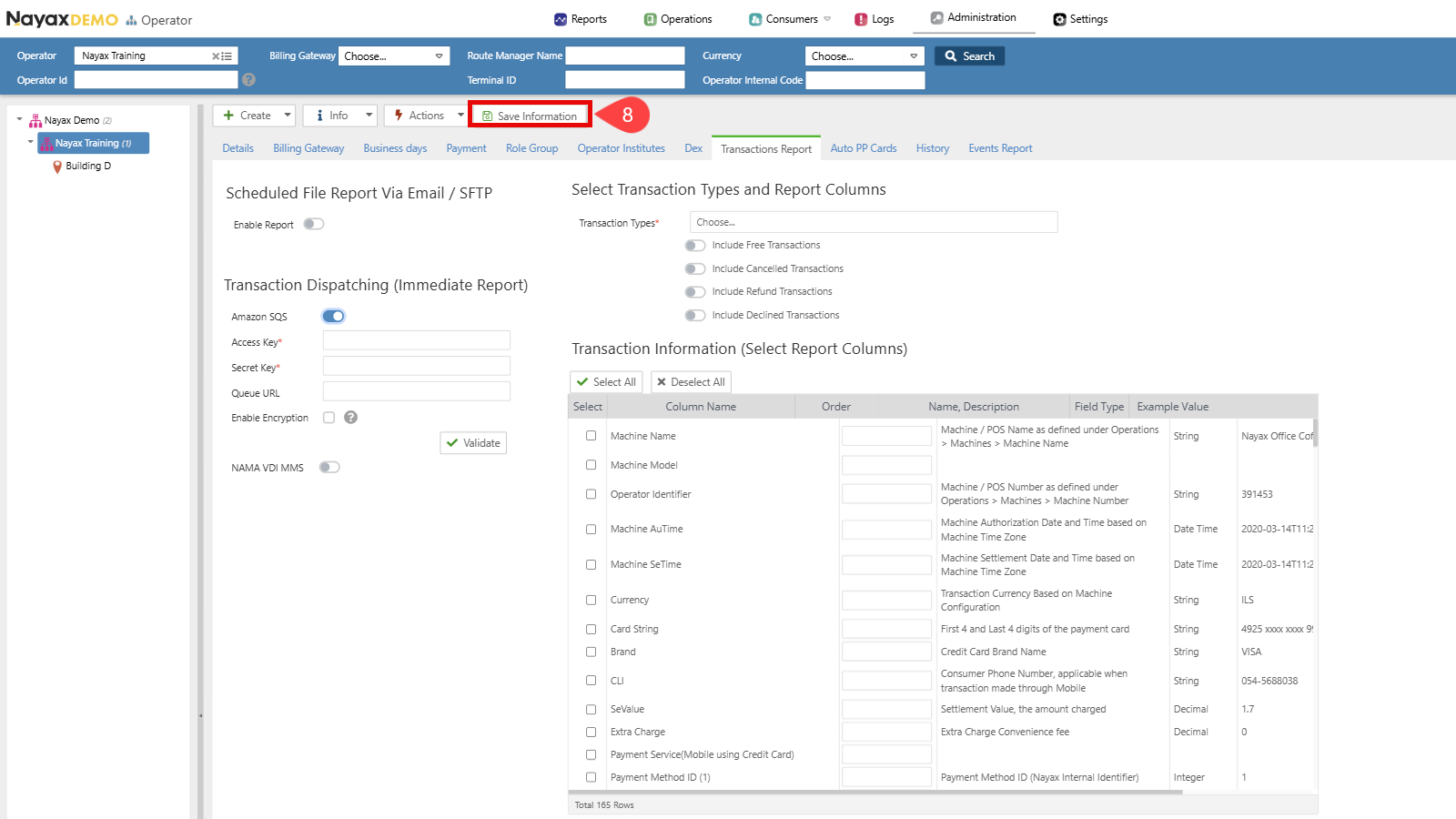

Click the Save Information button to apply the changes.

By completing these steps, your transaction data will be securely delivered to Amazon SQS based on the configuration you’ve set up.

Example Transaction JSON Message

Below is an example of the transaction JSON message that will be sent to Amazon SQS once the setup is complete:

{
  "TransactionId": 3804536984,
  "RemoteStartTransactionId": null,
  "PaymentMethodId": 2,
  "SiteId": 6,
  "MachineTime": "2020-04-20T10:34:05.063",
  "Void": false,
  "MachineId": 54265,
  "Data": {
    "Card String": "0077020491",
    "Settlement Time (Date only)": "2020-04-20",
    "Settlement Time (Time only)": "07:34:15",
    "SeValue": 1.0000,
    "Operator Identifier": "500905",
    "Machine Group": "Snack's",
    "Raw ENI Loyalty Num": null,
    "Machine Name": "Oleg's Simulator 1",
    "Machine AuTime": "2020-04-20T10:34:05.063",
    "Machine SeTime": "2020-04-20T10:34:15.433",
    "Currency": "EUR",
    "Brand": null,
    "CLI": null,
    "Extra Charge": 0.0000,
    "Payment Service (Mobile using Credit Card)": "Prepaid Credit using Prepaid Credit",
    "Payment Method ID (1)": 2,
    "Recognition Method ID (3)": 3,
    "Catalog Number": "",
    "Device Number": "0000000000500902",
    "Actor Hierarchy": "Dually / Nayax Test Bunny / Connect 2020 Rocks /",
    "Payment Method Description": "Prepaid Credit",
    "Recognition Description": "Prepaid Credit",
    "Card First 4 Digits": "0077",
    "Card Last 4 Digits": null,
    "Card Type": "MIFARE received as Hexadecimal",
    "Transaction ID": 3804536984,
    "Site ID": 6,
    "Authorization Time": "2020-04-20T07:34:05.063",
    "Authorization Value": 6.0000,
    "PayServTransid": "200420073405",
    "sePayServTransId": null,
    "Settlement Time": "2020-04-20T07:34:15.433",
    "Cancel Type": null,
    "Is Revalue Transaction": false,
    "Preselection Status": 0,
    "Is Phone Registration": false,
    "Is Multivend": false,
    "Settlment Failed": null,
    "Sale ID": -1,
    "Sale Value": 0.0000,
    "Updated DT": "2020-04-20T07:34:15.433",
    "Constant Preauthorization Value": null,
    "Is Partial Confirmation": null,
    "Authorization Code": null,
    "Authorization Date and Time": null,
    "Authorization RRN": "200420073405",
    "Event Code": null,
    "Guest Name": null,
    "Token": null,
    "Zip Code": null,
    "Billing Provider ID": null,
    "AVS Only": null,
    "BOD Transaction Key": null,
    "Disable Debit Cards": null,
    "Force Transactions Terminal": null,
    "Use Phone Transaction": null,
    "License ID": null,
    "Merchant ID": null,
    "Billing Site ID": null,
    "Terminal ID": null,
    "User Password": null,
    "With ZIP": null,
    "Use Phone Contactless": false,
    "Use Phone Contact": false,
    "Debit Card Prefix": null,
    "Actor Description": "Connect 2020 Rocks",
    "Institute Description": "NAYAX US",
    "Location Code": 234234,
    "Location Description": "Booth 134",
    "Operator Institute Code": 4,
    "Area Description": "Connect 2020 Rocks",
    "OP Button Code": "Z1",
    "Barcode": null,
    "Cost Price": null,
    "Card Price": null,
    "Prepaid Price": null,
    "Machine Price": 4.0000,
    "Cash Price": null,
    "Default Price": null,
    "Actor Code": 12,
    "Display Card Number": "0077020491",
    "Card Holder Name": "Automatically Created",
    "User Identity": "1",
    "Billing Provider Name": null,
    "Is Offline Transaction": null,
    "Is EMV Transaction": null,
    "Machine AuTime (Date only)": "2020-04-20",
    "Machine AuTime (Time only)": "10:34:05",
    "Machine SeTime (Date only)": "2020-04-20",
    "Machine SeTime (Time only)": "10:34:15",
    "Updated DT (Date only)": "2020-04-20",
    "Updated DT (Time only)": "07:34:15",
    "Customer Type": 1,
    "Actor ID": 32622,
    "Client Id": "",
    "Contract Name": null,
    "Payout Day": null,
    "Contract Id": null,
    "Airport Id": null,
    "Is Refund Card": false,
    "Contract Number": null,
    "Airport Code": null,
    "Payed Value": 1.0000,
    "Consumer ID": 1906814004668638903,
    "Discount Card ID": 340897206534728,
    "Discount Card Number": "1424243531",
    "Discount Card User Identity": "",
    "Discount Card Physical Type ID": 30000531,
    "Discount Card Activation Date": null,
    "Discount Card Expiration Date": null,
    "Products": [
      {
        "Product(Product Name(MDB Code,PA Code))": "Bounty(0,A1)",
        "Product Group": "Snacks",
        "Product Code in Map": 0,
        "Product PA Code": "A1",
        "Product Volume Type": "600 ml",
        "Product Name": "Bounty",
        "Product VAT Id": null,
        "Product Tax Value": null,
        "Product Tax Code": null,
        "Product Vat Amount": null,
        "Product Net Price": null,
        "Product External Prepaid Price": null,
        "Product Group Code": null,
        "Product Group Sub Code": null,
        "Product Retail Price": null,
        "Product Discount Percentage": 0.00,
        "Product Discount Amount": 0.0000,
        "Product Bruto": 1.0000,
        "Product Catalog Number": ""
      }
    ]
  }
}

JSON Message Fields Description

The following table describes the fields included in the transaction JSON message:

Field Name	Type	Description
Machine Name	`string`	Machine / POS Name as defined under Operations > Machines > Machine Name
Machine Model	`string`	Model of the machine used.
Operator Identifier	`string`	Unique identifier for the machine operator.
Machine AuTime	`Date Time`	Authorization time of the machine.
Machine SeTime	`Date Time`	Settlement time of the machine.
Currency	`string`	Currency used in the transaction.
Card String	`string`	Encrypted or masked card data.
Brand	`string`	Brand associated with the transaction or card.
CLI	`string`	Caller Line Identification for tracking.
SeValue	`Decimal`	Settled value of the transaction.
Extra Charge	`Decimal`	Any additional charges applied.
Payment Service	`string`	Payment service used, e.g., mobile payment via credit card.
Payment Method ID (1)	`Integer`	Identifier for the primary payment method.
Recognition Method ID (3)	`Integer`	Identifier for recognition method used.
Catalog Number	`string`	Product catalog number.
Product	`string`	Product name, including MDB Code or PA Code if applicable.
Device Number	`string`	Unique identifier of the device used for the transaction.
Actor Hierarchy	`string`	Hierarchy of the actor involved in the transaction.
Payment Method Description	`string`	Description of the payment method used.
Recognition Description	`string`	Description of the recognition method applied.
Card First 4 Digits	`string`	First four digits of the card number.
Card Last 4 Digits	`string`	Last four digits of the card number.
Card Type	`string`	Type of card used, e.g., debit or credit.
Machine Group	`string`	Group or category the machine belongs to.
Product Group	`string`	Group or category the product belongs to.
Transaction ID	`Integer`	Unique identifier for the transaction.
Site ID	`Integer`	Identifier for the site where the transaction occurred.
Authorization Time	`Date Time`	Time when the transaction was authorized.
Authorization Value	`Decimal`	Authorized value of the transaction.
PayServTransid	`Integer`	Payment service transaction ID.
sePayServTransId	`string`	Settlement payment service transaction ID.
Settlement Time	`Date Time`	Time when the transaction was settled.
Product Code in Map	`Integer`	Mapped product code identifier.
Cancel Type	`Integer`	Type of cancellation, if applicable.
Is Revalue Transaction	`Boolean`	Indicates if this is a revalue transaction.
Preselection Status	`Integer`	Status of the preselection process.
Is Phone Registration	`Boolean`	Indicates if the phone is registered.
Is Multivend	`Boolean`	Indicates if the transaction involves multiple vending actions.
Settlement Failed		Indicates if the settlement process failed.
Sale ID	`Integer`	Unique identifier for the sale.
Sale Value	`Decimal`	Value of the sale transaction.
Updated DT	`Date Time`	Date and time of the last update.
Constant Preauthorization Value		Preauthorized constant value, if applicable.
Is Partial Confirmation		Indicates if the confirmation was partial.
Authorization Code	`string`	Code for authorization.
Authorization Date and Time		Date and time of the authorization.
Authorization RRN	`string`	Retrieval reference number for the authorization.
Event Code		Code associated with the event.
Guest Name	`string`	Name of the guest, if applicable.
Token		Token associated with the transaction.
Zip Code		ZIP code of the location, if applicable.
Billing Provider ID		Identifier for the billing provider.
AVS Only		Indicates if the transaction was AVS-only.
BOS Transaction Key		Key for the BOS transaction.
Disable Debit Cards		Indicates if debit cards are disabled.
Force Transactions Terminal		Indicates if transactions are forced on the terminal.
Use Phone Transaction		Indicates if phone-based transactions are used.
License ID		Identifier for the license.
Merchant ID		Identifier for the merchant.
Billing Site ID		Identifier for the billing site.
Terminal ID		Unique identifier for the terminal.
User Name		User name associated with the transaction.
User Password		Password of the user.
With ZIP		Indicates if ZIP verification was performed.
Use Phone Contactless		Indicates if contactless phone transactions are used.
Use Phone Contact		Indicates if phone contact transactions are used.
Debit Card Prefix		Prefix for debit cards.
Actor Description		Description of the actor involved in the transaction.
Institute Description	`string`	Description of the associated institute.
Location Code	`Integer`	Code for the location of the transaction.
Location Description	`string`	Description of the transaction location.
Operator Institute Code	`Integer`	Code of the operator’s institute.
Area Description		Description of the area where the transaction occurred.
Product PA Code		PA code of the product.
OP Button Code	`string`	Code for the operator button pressed.
Product Volume Type		Type of volume measurement for the product.
Barcode	`string`	Barcode of the product.
Cost Price	`Decimal`	Cost price of the product.
Card Price	`Decimal`	Price when paid with a card.
Prepaid Price	`Decimal`	Prepaid price of the product.
Machine Price	`Decimal`	Price charged by the machine.
Cash Price	`Decimal`	Price when paid in cash.
Default Price	`Decimal`	Default price of the product.
Product Name		Name of the product.
Actor Code	`Integer`	Code of the actor involved.
Actor ID	`Integer`	Unique ID for the actor.
Display Card Number	`string`	Masked display of the card number.
Card Holder Name	`string`	Name of the cardholder.
User Identity	`string`	Identity of the user associated with the transaction.
Billing Provider Name		Name of the billing provider.
Is Offline Transaction		Indicates if the transaction was offline.
Is EMV Transaction		Indicates if the transaction used EMV technology.
Machine AuTime (Date only)	`string`	Authorization date of the machine in a date-only format.
Machine AuTime (Time only)	`string`	Authorization time of the machine in a time-only format.
Machine SeTime (Date only)	`string`	Settlement date of the machine in a date-only format.
Machine SeTime (Time only)	`string`	Settlement time of the machine in a time-only format.
Settlement Time (Date only)	`string`	Settlement date in a date-only format.
Settlement Time (Time only)	`string`	Settlement time in a time-only format.
Updated DT (Date only)	`string`	Last updated date in a date-only format.
Updated DT (Time only)	`string`	Last updated time in a time-only format.
Raw ENI Loyalty Num		Raw ENI loyalty number.
Parsed ENI Loyalty Num		Parsed ENI loyalty number.
Products	`Object`	List of products involved in the transaction.
Product VAT Id		VAT identifier for the product.
Product Tax Value		Tax value applied to the product.
Product Tax Code		Tax code associated with the product.
Product Vat Amount		Amount of VAT applied to the product.
Product Net Price		Net price of the product before taxes.
Product External Prepaid Price		External prepaid price of the product.
Customer Type		Type of customer involved in the transaction.
Product Group Code		Code of the product group.
Product Group Sub Code		Sub-code of the product group.
Product Retail Price		Retail price of the product.
Product Discount Percentage		Percentage of discount applied to the product.
Product Discount Amount		Discount amount applied to the product.
Product Bruto		Gross value of the product.
Product Catalog Number		Catalog number of the product.
Client Id		Unique ID for the client.
Contract Name		Name of the contract associated with the transaction.
Payout Day		Day when the payout is scheduled.
Contract Id		ID of the contract associated with the transaction.
Airport Id	`Integer`	Unique ID of the airport, if applicable.
Member Type		Type of membership associated with the transaction.
Is Refund Card	`Boolean`	Indicates if the card used is a refund card.
Contract Number		Number of the contract associated with the transaction.
Airport Code	`string`	Code of the airport, if applicable.
Payed Value	`Decimal`	Value paid in the transaction.
Consumer ID	`Integer`	Unique ID for the consumer.
Discount Card ID	`Integer`	Unique ID for the discount card used.
Discount Card Number	`string`	Number of the discount card used.
Discount Card User Identity	`string`	Identity of the discount card user.
Discount Card Physical Type ID	`string`	Physical type ID of the discount card.
Discount Card Activation Date	`string`	Activation date of the discount card.
Discount Card Expiration Date	`string`	Expiration date of the discount card.
