Set Up EVA DTS DEX/DDCMP Audit File Delivery

To set up DEX file delivery to Amazon SQS, you must have access to Nayax Core with the appropriate user permissions. Specifically, the following roles are required:

• VMO-Manager
• DEX Notify - SQS

Additionally, ensure you have the Amazon SQS Queue URL, Access Key, and Secret Key obtained during the queue setup process.

📘

Prerequisite: Dex Read Schedule Configuration

These setup instructions assume that the DEX Read schedule has already been configured.

Operator Level Setup

Follow these steps to configure DEX delivery at the operator level in the Nayax Core:

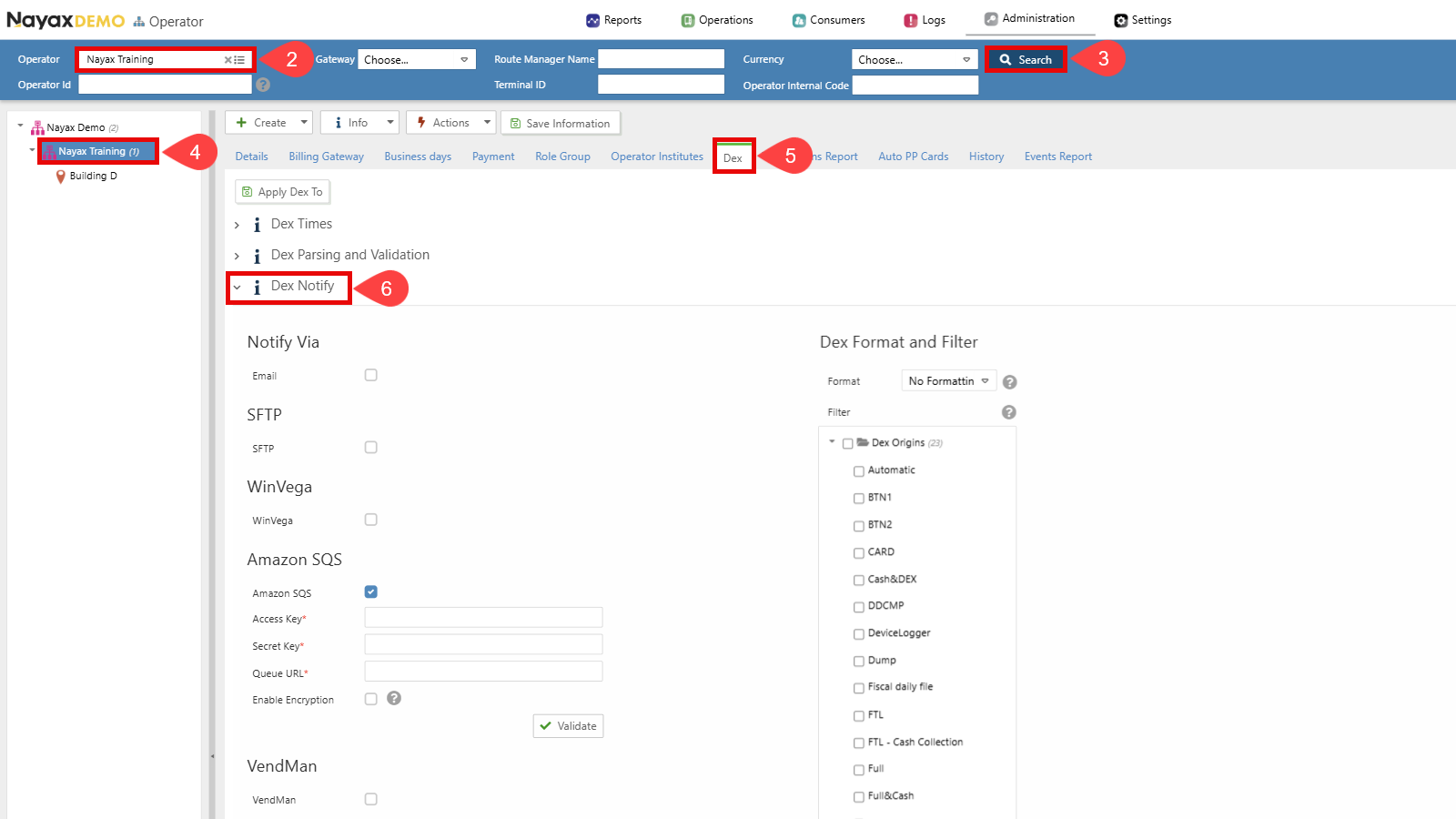

1. Go to Administration > Operator.



2. Find the Operator you wish to set up.

3. Click the Search button.

4. Select the operator to display all tabs and details.

5. Go to the Dex tab.

6. Click to open the Dex Notify section.

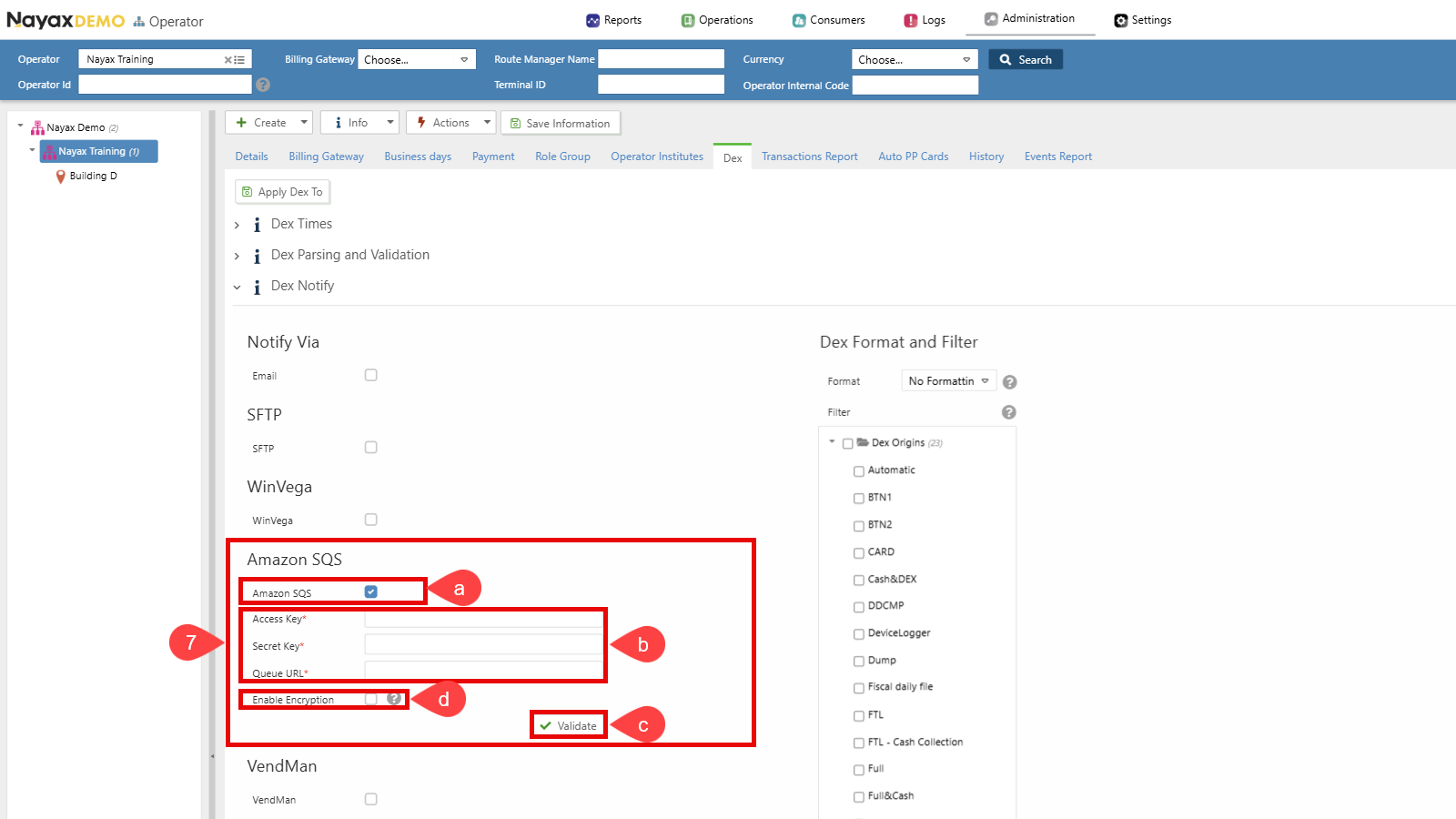

7. Set up Dex Transmission to Amazon SQS:
   a. Select the checkbox next to Amazon SQS to enable this option.
   b. Enter the SQS credentials (Access Key, Secret Key and Queue URL).
   c. Click the Validate button to ensure the Queue credentials are correct.
   d. Enable Encryption (Optional). See the Set Up Encryption section for details.

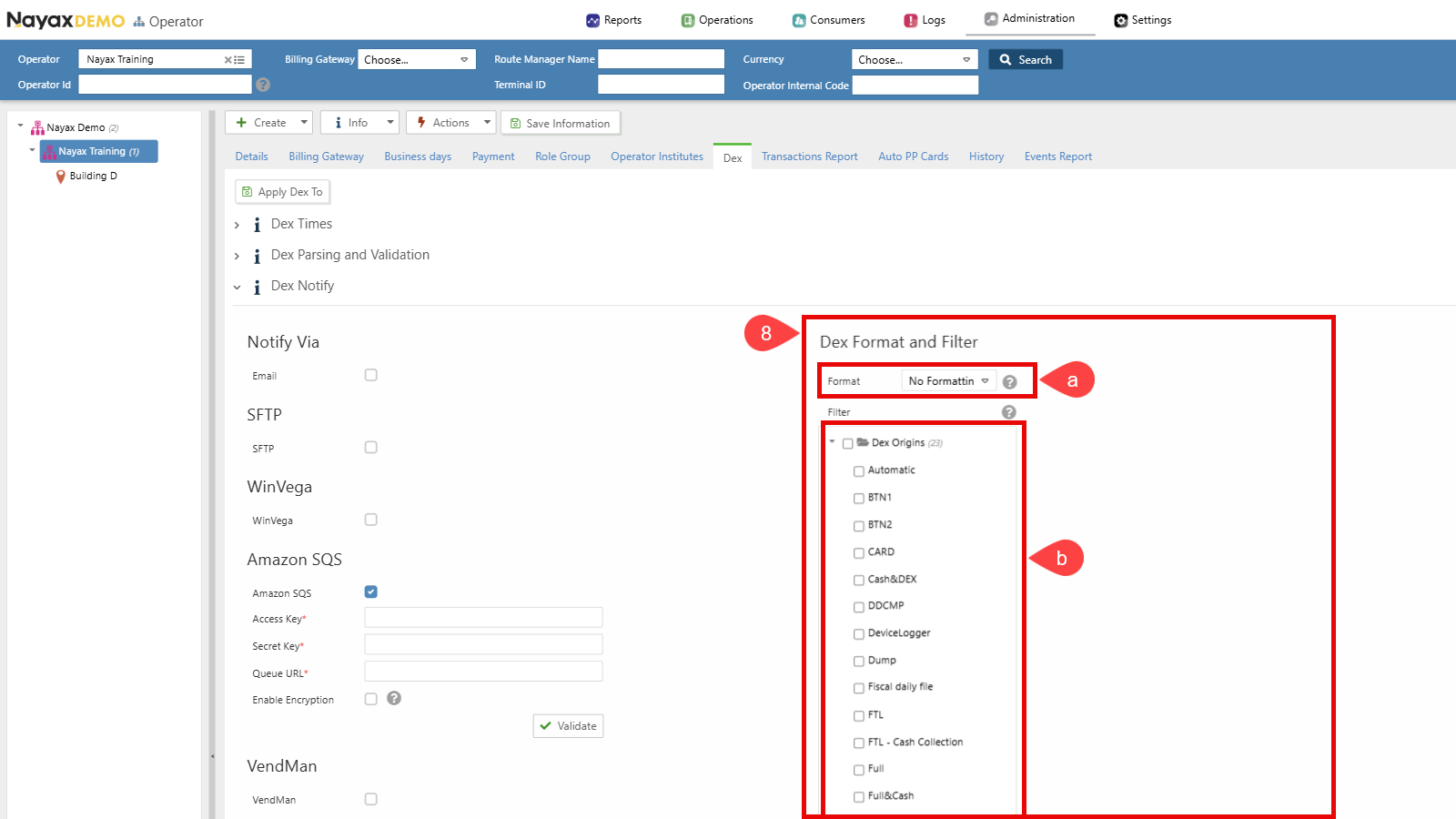

8. Choose Dex Format and Filter settings:
   a. Ensure the format is set to No Formatting.
   b. Select the desired DEX Read Types. Only the selected Dex Origins will be sent to the Queue.

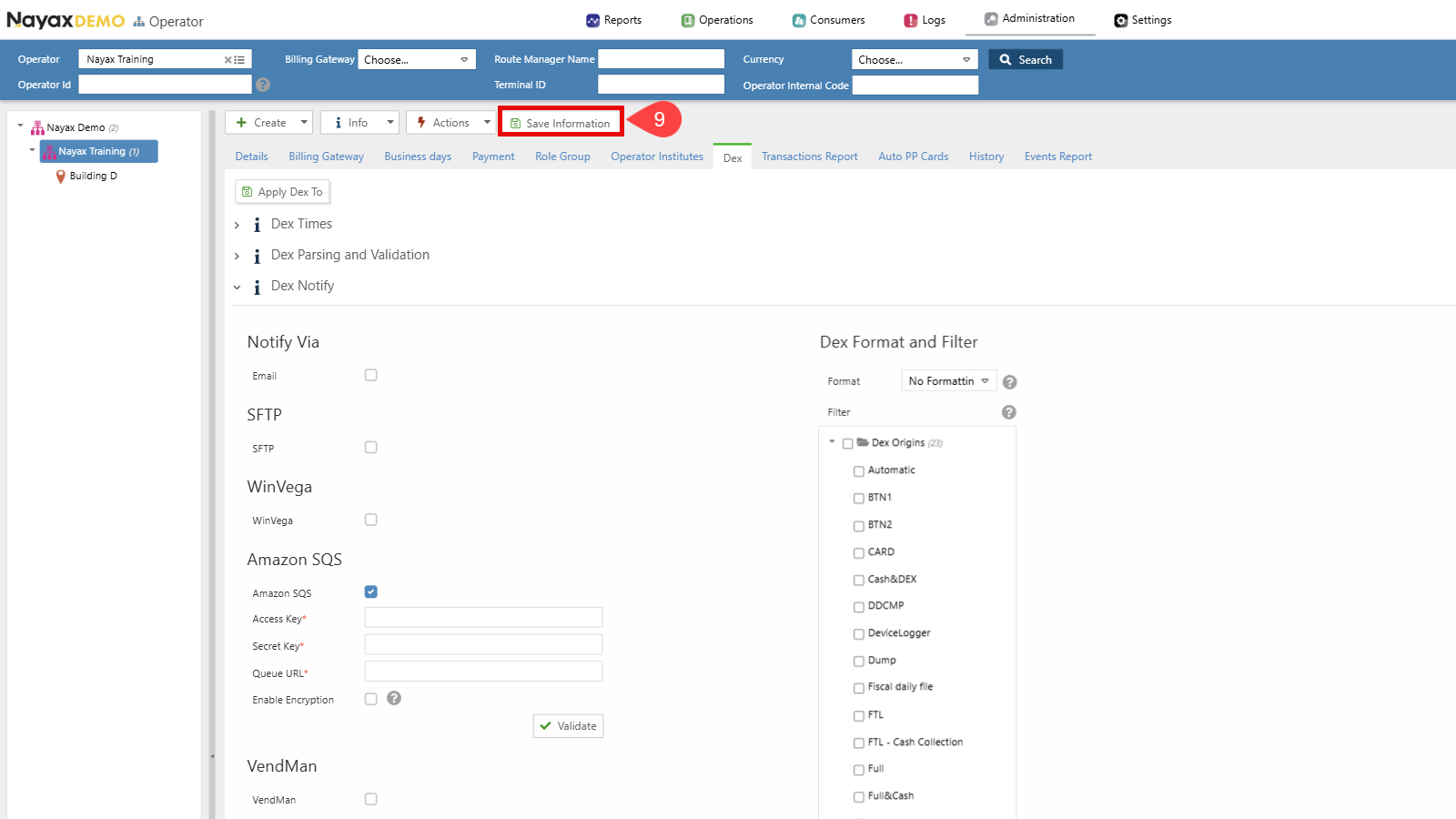

9. Click the Save Information button to apply the changes.



🚧

Operator Defaults vs Machine-Level Configuration

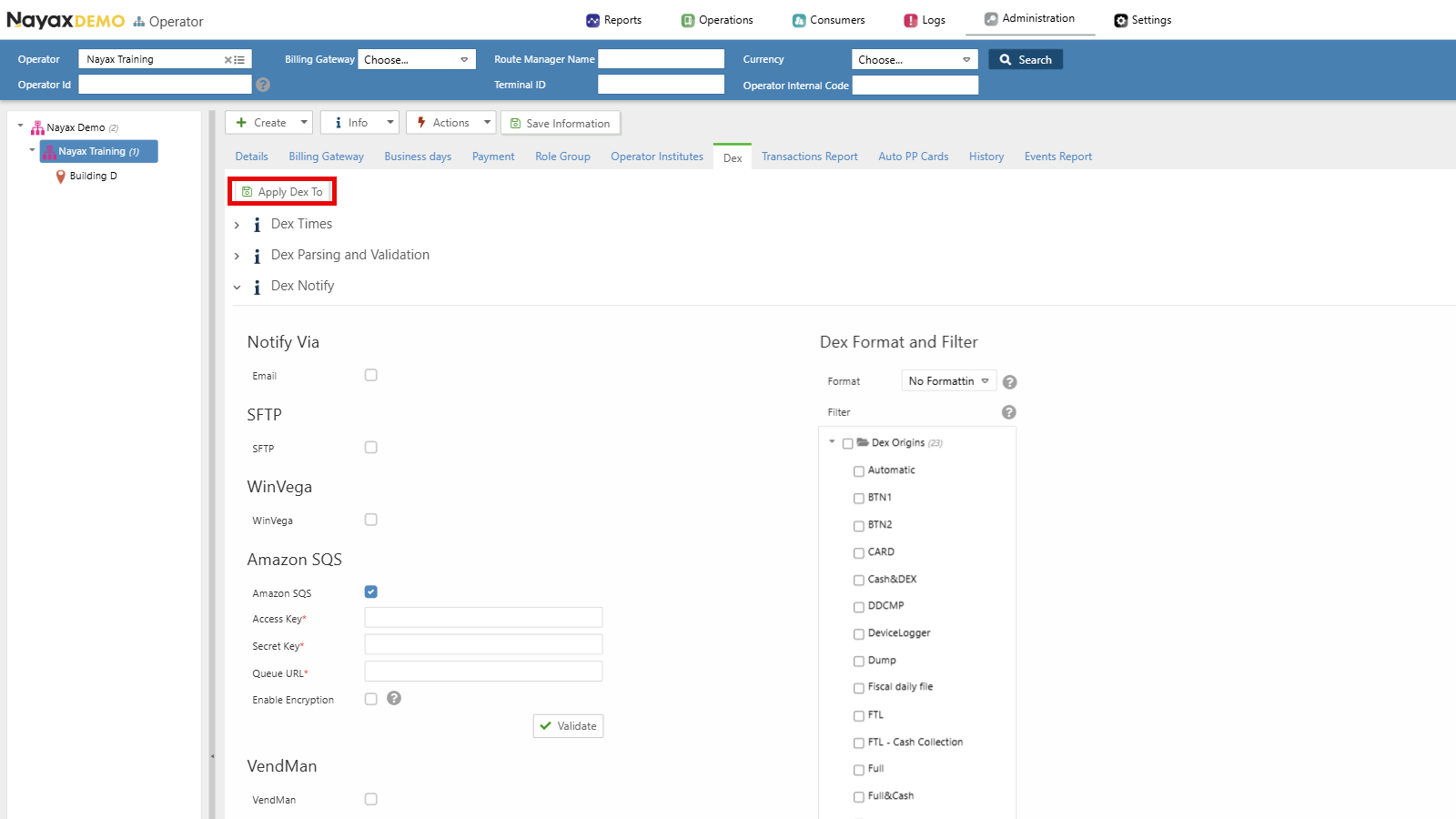

Setting up DEX delivery at the operator level does not initiate the delivery of DEX files to the queue. Instead, these configurations act as defaults for new machines under the operator’s hierarchy. You can propagate these settings using the Apply Dex to button or perform individual setups at the machine level as explained below.

Machine Level Setup

📘

Prerequisite: Dex Read Schedule Configuration

These setup instructions assume that the DEX Read schedule has already been configured.

To configure DEX delivery at the machine level:

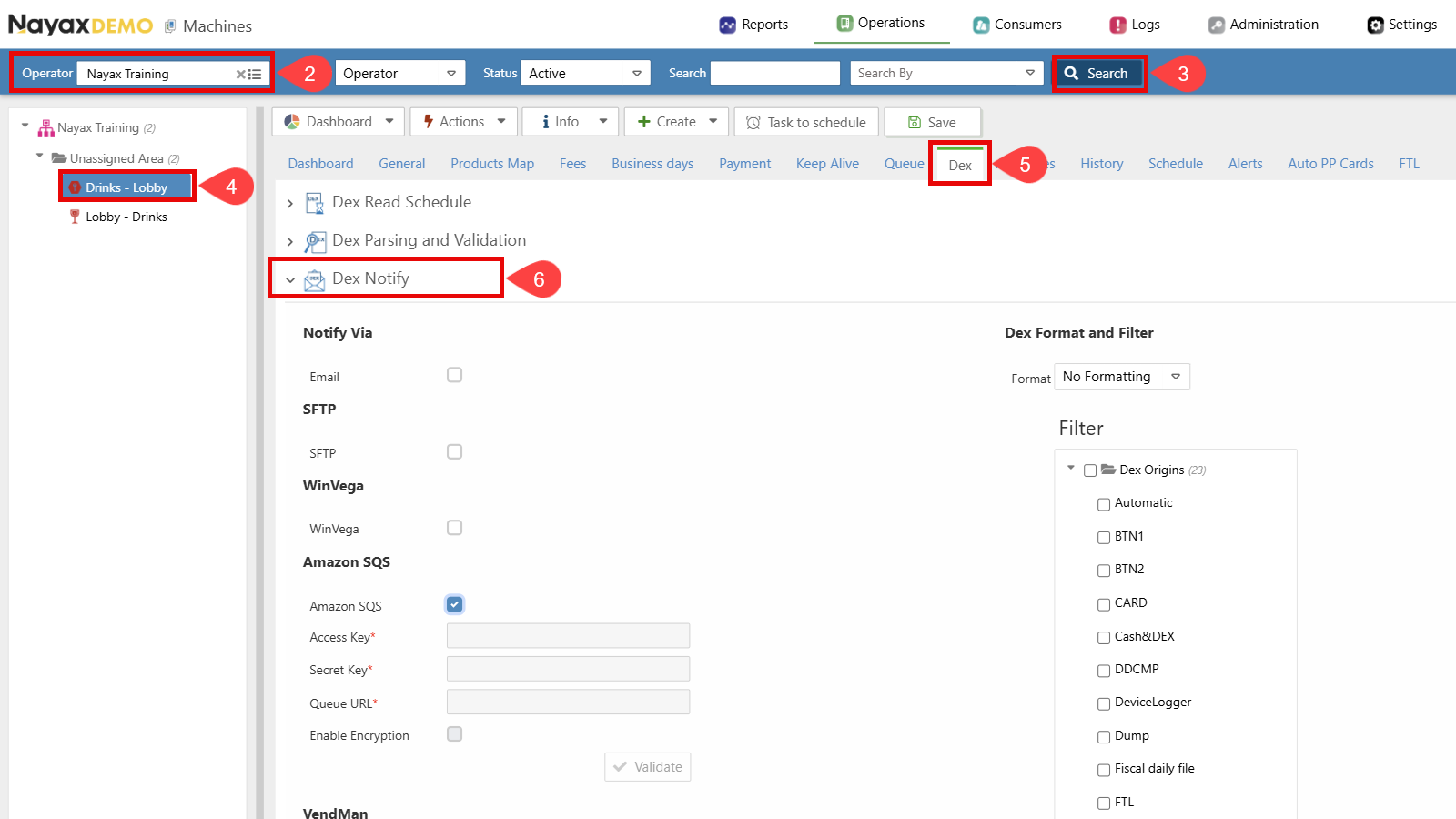

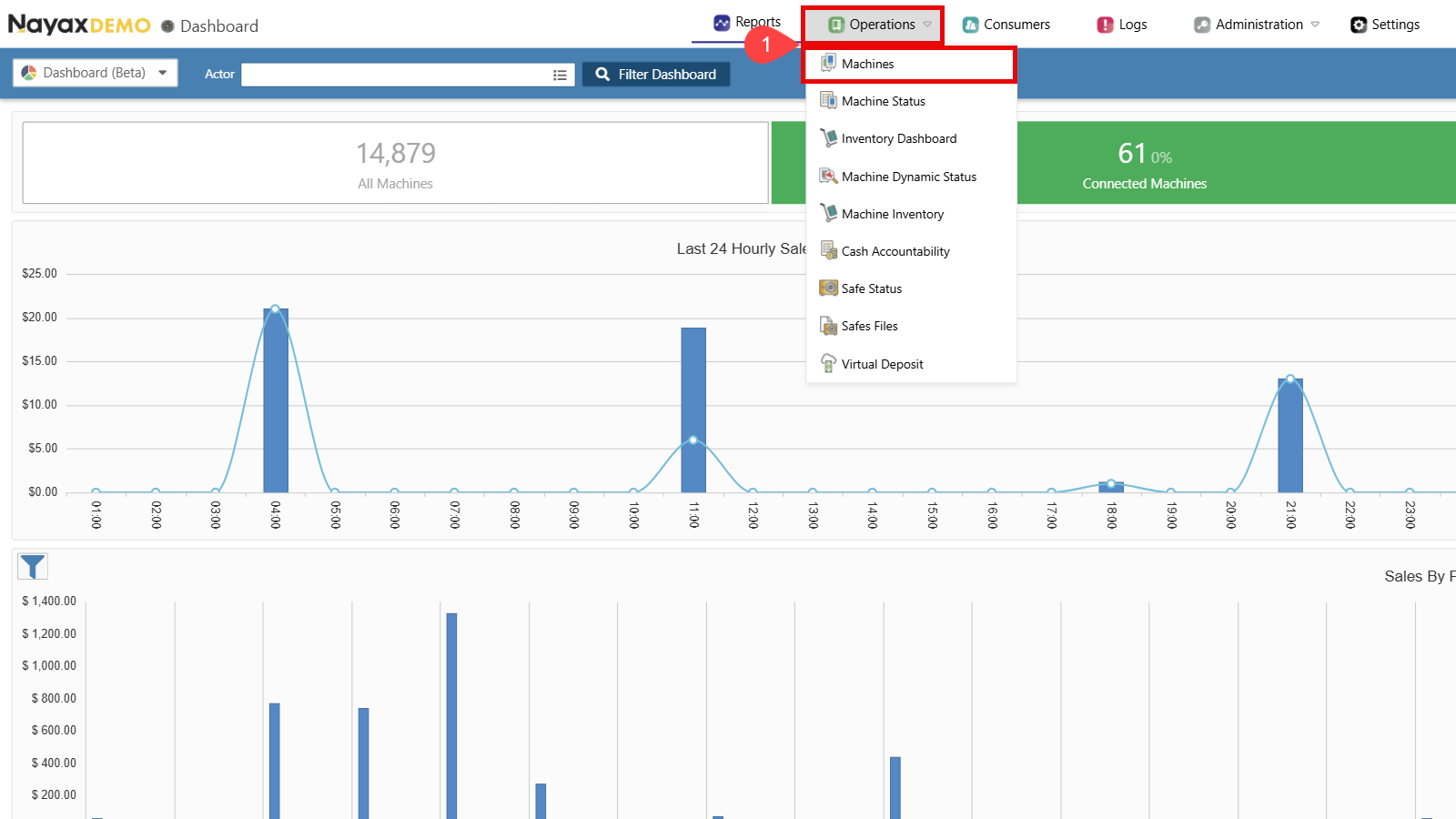

1. Go to Operations > Machines in the Nayax Core.



2. Find the Operator you wish to set up.

3. Click the Search button.

4. Select the operator to display all tabs and details.

5. Go to the Dex tab.

6. Click to open the Dex Notify section.

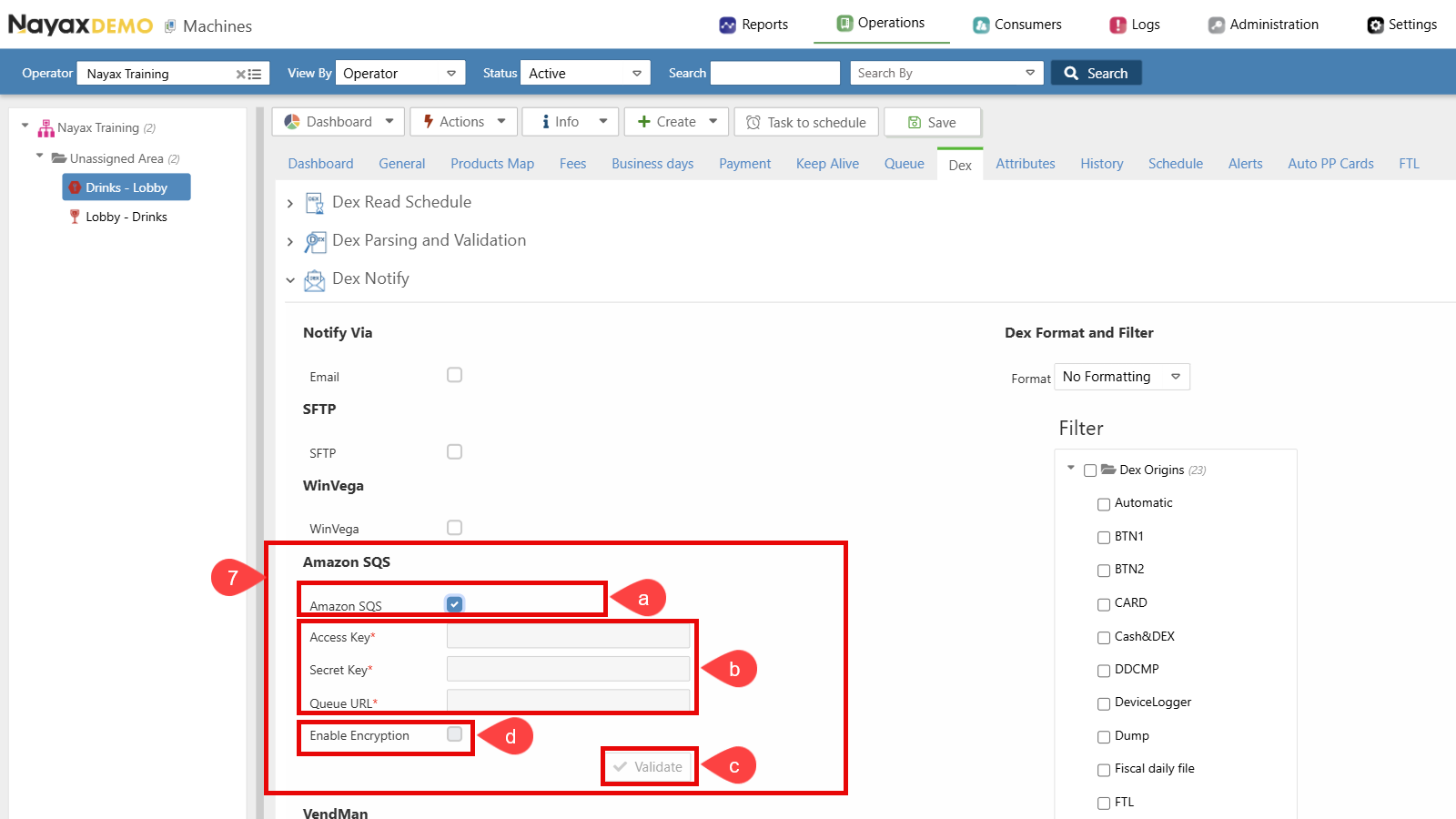

7. Set up Dex Transmission to Amazon SQS:
   a. Select the checkbox next to Amazon SQS to enable this option.
   b. Enter the SQS credentials (Access Key, Secret Key and Queue URL).
   c. Click the Validate button to ensure the Queue credentials are correct.
   d. Enable Encryption (Optional). See the Set Up Encryption section for details.

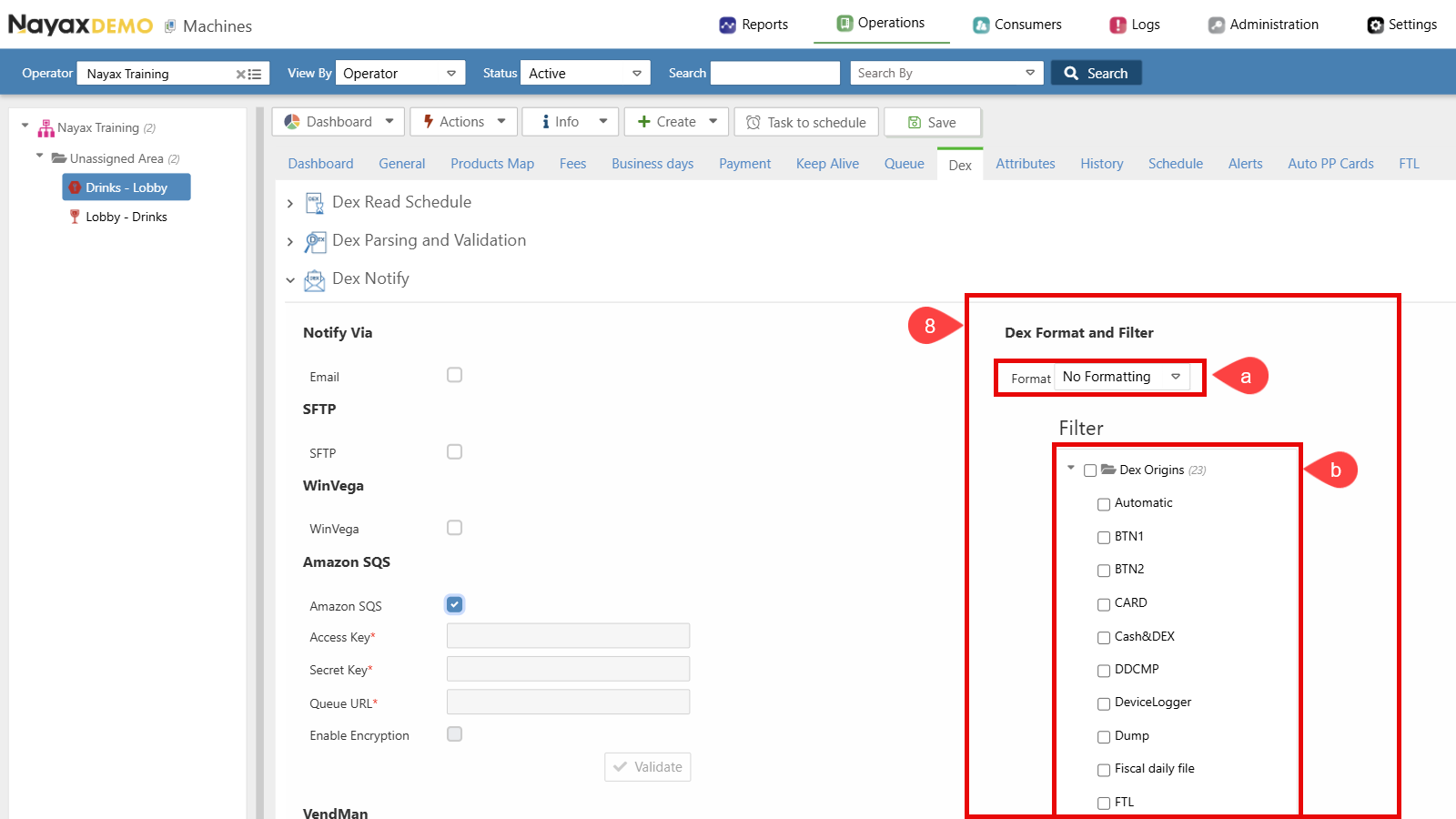

8. Choose Dex Format and Filter settings:
   a. Ensure the format is set to No Formatting.
   b. Select the desired DEX Read Types. Only the selected Dex Origins will be sent to the Queue.

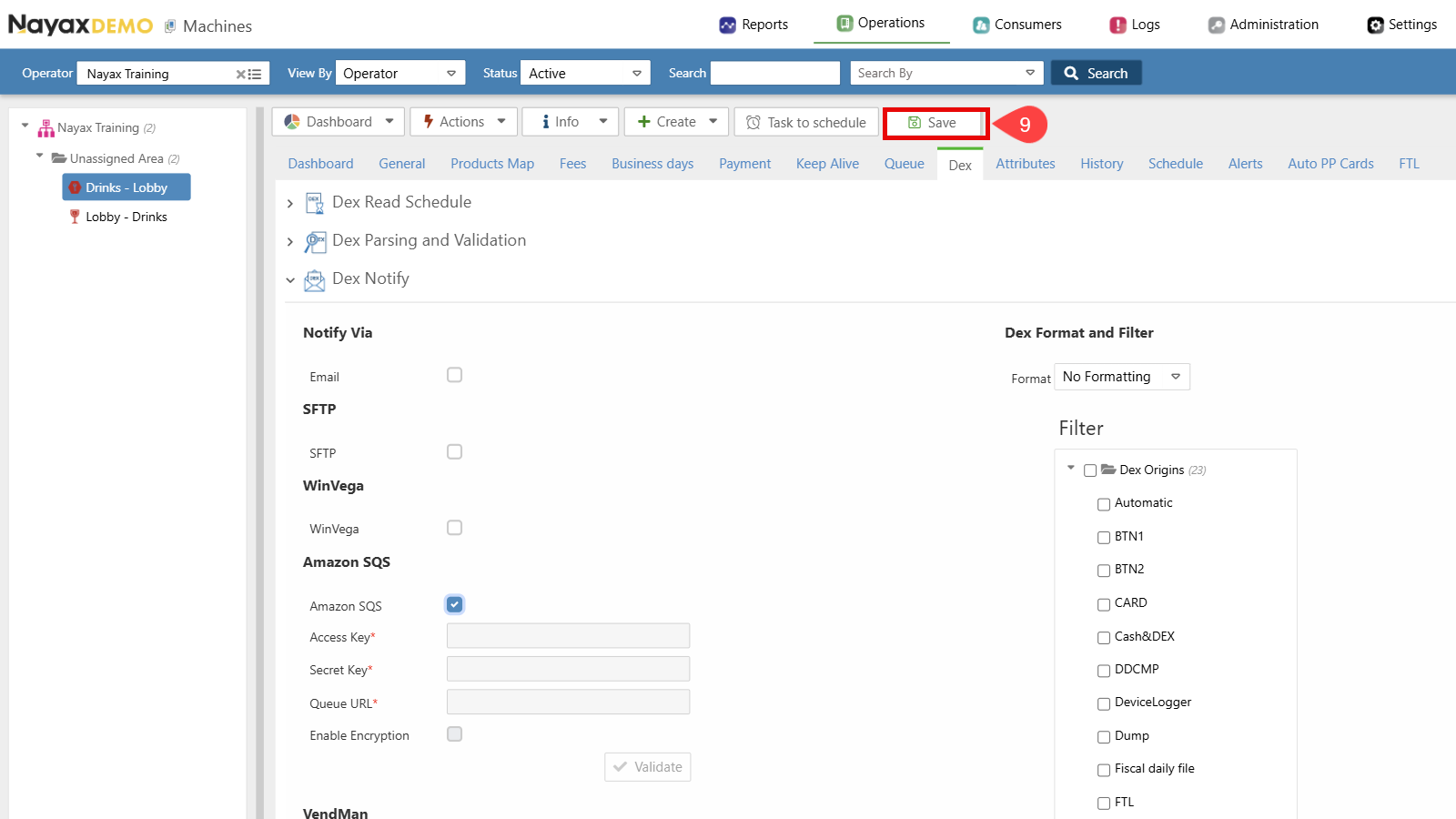

9. Click the Save button to apply the changes.



Example DEX/DDCMP Audit file JSON Message

Below is an example of the JSON message format for the DEX/DDCMP audit file that will be sent to Amazon SQS upon completing the setup:

{
"HWSerial": "534332119000155",
"MachineDate": "20200325 090132_660",
"OperatorIdentifier": "500454",
"Origin": "AUTOMATIC",
"DexData": "DXS*AUTSENSIT3*VA*V0/6*1\r\nST*001*0001\r\nID1*P138140482*AMS SENSIT
III*****6*0\r\nID4*2*0178*1\r\nID5*200325*0358**NA\r\nCB1*P138140482*AMS SENSIT III*3426-
v1.37*2.50\r\nVA1*7037419*11431*0*0*3165272*6786*0*0\r\nCA1*000045003002*ILS-G801-
009*3600\r\nCA2*4110*8*0*0\r\nCA3*0*0*0*0*1950*0*1950*0*0*0\r\nCA4*0*0*100*0\r\nCA6*9823*1014\r\nCA7*0*0*0*0\r\nCA8*0*18800\r\nCA10*0*0
\r\nCA15*0\r\nBA1*151100011754*XBA-EUR40000*0120\r\nDA1*332119000155*DMX - 2011
*0100\r\nDA2*7033309*11423*0*0\r\nDA4*0*0\r\nDA5*0*0*3165272*6786***31038*220\r\nDA9*0*0\r\nPA1*10*550*Kinder Bueno
Whi\r\nPA2*2*1100*0*0\r\nPA1*11*600*dortos green\r\nPA2*241*143500*0*0*156*73500*0*0*0*0\r\nPA1*13*600*Bamba
nugget\r\nPA2*271*161300*0*0*178*94700*0*0*0*0\r\nPA1*15*450*bamba
big\r\nPA2*504*273000*0*0*375*190037*0*0*20*1700\r\nPA1*17*600*Chips\r\nPA2*269*161300*0*0*191*88050*0*0*0*0\r\nPA1*19*600*Chips\r\nPA2*
196*117300*0*0*145*73350*0*0*0*0\r\nPA1*21*600*milka\r\nPA2*282*168900*0*0*149*66800*0*0*34*3400\r\nPA1*23*350*Bisli
Gril\r\nPA2*453*213350*0*0*315*108300*0*0*5*650\r\nPA1*25*550* Bisli
Gril\r\nPA2*332*174350*0*0*205*81350*0*0*0*0\r\nPA1*27*600*nishnushim\r\nPA2*280*164700*0*0*179*73750*0*0*0*0\r\nPA1*29*600*Abadi\r\nPA2
*254*135500*0*0*142*54600*0*0*9*900\r\nPA1*31*600*Click BW\r\nPA2*363*233500*0*0*179*89050*0*0*22*2100\r\nPA1*33*700*Click-
cariot\r\nPA2*372*244700*0*0*165*76500*0*0*0*0\r\nPA1*35*700*Click-BW\r\nPA2*425*289100*0*0*282*163500*0*0*0*0\r\nPA1*37*700*Click-
Red\r\nPA2*462*313000*0*0*237*119900*0*0*0*0\r\nPA1*39*700*crunch
red\r\nPA2*428*292300*0*0*220*118000*0*0*0*0\r\nPA1*40*550*mekupelet\r\nPA2*269*151650*0*0*129*50450*0*0*2*1100\r\nPA1*41*550*Kinder
Bueno Whi\r\nPA2*494*275350*0*0*301*121000*0*0*0*0\r\nPA1*42*550*Twix\r\nPA2*353*196800*0*0*261*101387*0*0*0*0\r\nPA1*43*550*Pesek
azman\r\nPA2*302*167350*0*0*203*91100*0*0*1*550\r\nPA1*44*600*gardena\r\nPA2*389*232900*0*0*278*87600*0*0*0*0\r\nPA1*45*600*Kitkat-
Chunky\r\nPA2*388*232300*0*0*201*78350*0*0*0*0\r\nPA1*46*600*Mike and
Ike\r\nPA2*370*221400*0*0*233*82950*0*0*0*0\r\nPA1*47*600*Mentos\r\nPA2*285*170700*0*0*164*45450*0*0*0*0\r\nPA1*48*600*must\r\nPA2*346
*205700*0*0*223*104550*0*0*0*0\r\nPA1*49*500*Must\r\nPA2*272*119765*0*0*200*83950*0*0*12*5388\r\nPA1*50*550*bueno\r\nPA2*432*242150*0
*0*216*76350*0*0*0*0\r\nPA1*51*550*Corny Choco Bana\r\nPA2*404*226050*0*0*235*76950*0*0*7*350\r\nPA1*52*600*Corny
Chocolate\r\nPA2*324*184000*0*0*180*77050*0*0*0*0\r\nPA1*53*1350*EXCE\r\nPA2*358*343750*0*0*197*193574*0*0*33*2600\r\nPA1*54*1200*volta
ge\r\nPA2*214*145700*0*0*111*60150*0*0*3*1500\r\nPA1*55*1350*EXCE\r\nPA2*408*437050*0*0*235*268737*0*0*67*6300\r\nPA1*56*500*Fitness
\r\nPA2*288*165800*0*0*115*43050*0*0*5*4500\r\nPA1*57*500*Fitness \r\nPA2*227*134600*0*0*102*28100*0*0*0*0\r\nPA1*58*500*Fitness
\r\nPA2*143*82500*0*0*84*23137*0*0*0*0\r\nPA1*59*100*Embedded
Testing****1\r\nPA2*31*15004*0*0\r\nEA1*EGS*200205*0104***58\r\nEA1*EGT*200205*0112***63\r\nEA1*EGS*200205*0412***57\r\nEA1*EGT*200205*
0418***66\r\nEA1*EGS*200205*0454***56\r\nEA1*EGT*200205*0455***59\r\nEA1*EGS*200205*0456***62\r\nEA1*EGT*200205*0457***64\r\nEA1*EGS*
200205*0705***57\r\nEA1*EGT*200205*0708***63\r\nEA7*0*151\r\nEA3*6923*200325*0358*1234567890*200325*0307*1234567890**9823*6923\r\nEA4
*151213*0630*1234567890\r\nSD1*****AUTO*AUTO\r\nMA5*TEMP*59*15\r\nG85*3CE2\r\nSE*110*0001\r\
}

JSON Message Fields Description

The following table describes the fields included in the DEX/DDCMP audit file JSON message:
